SHVHP-6
DESCRIPTION

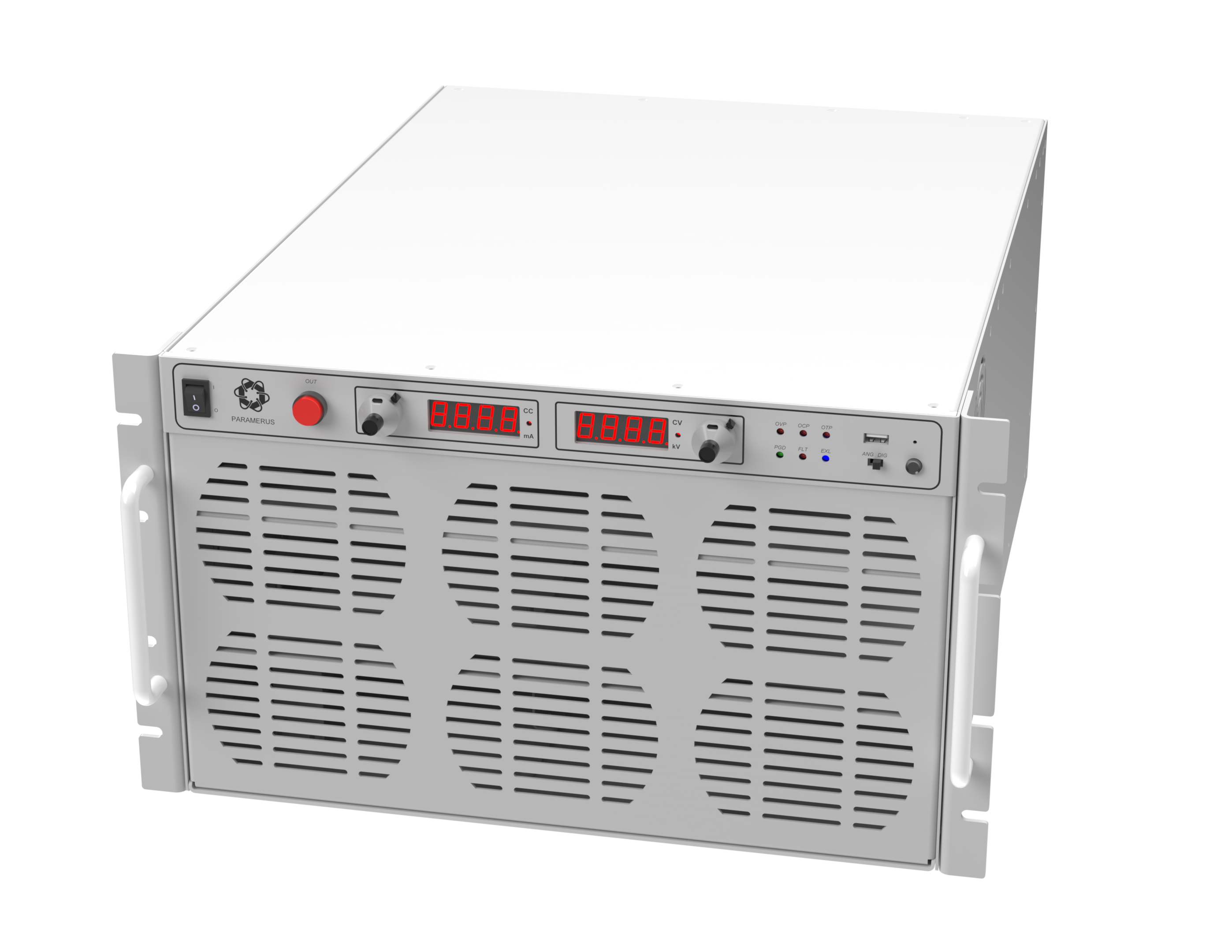

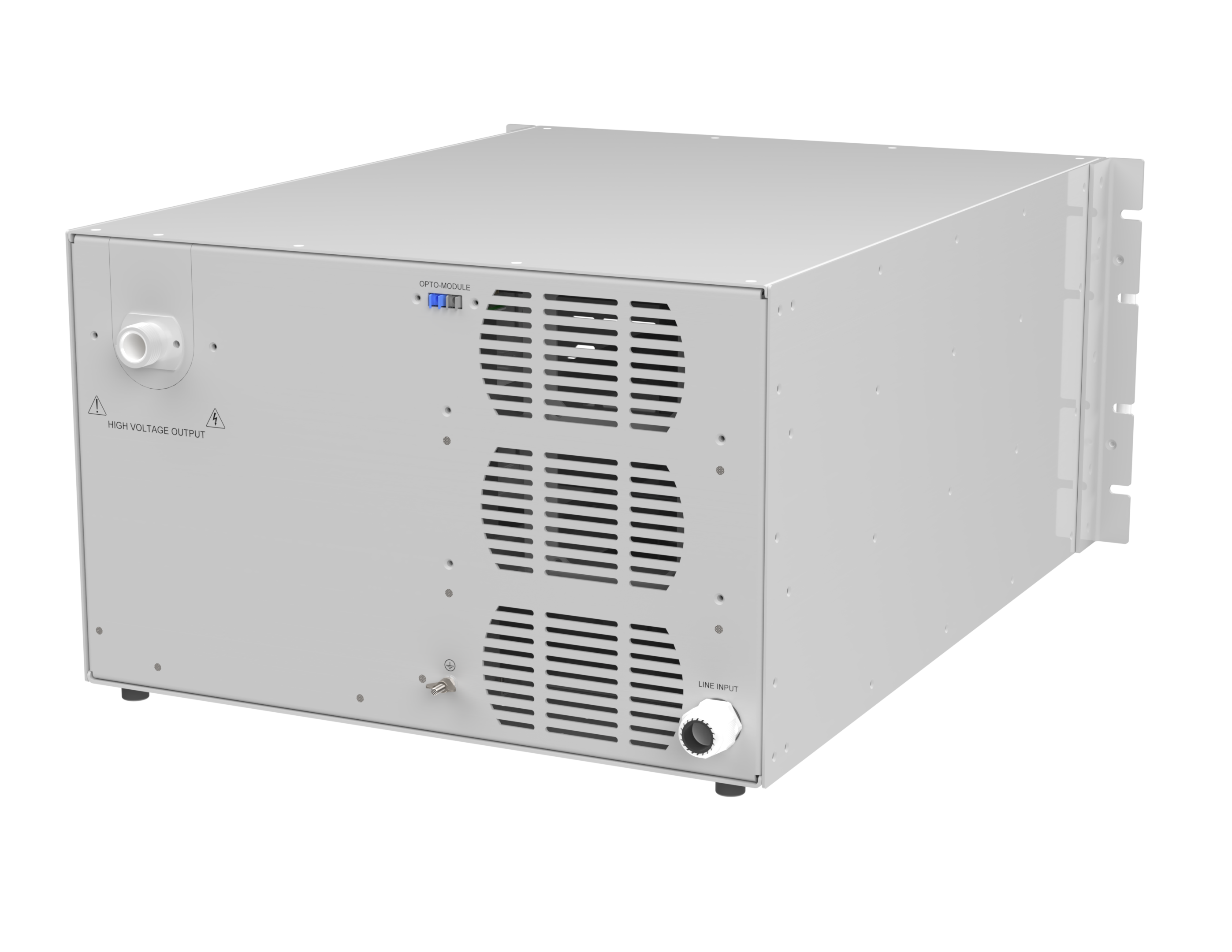

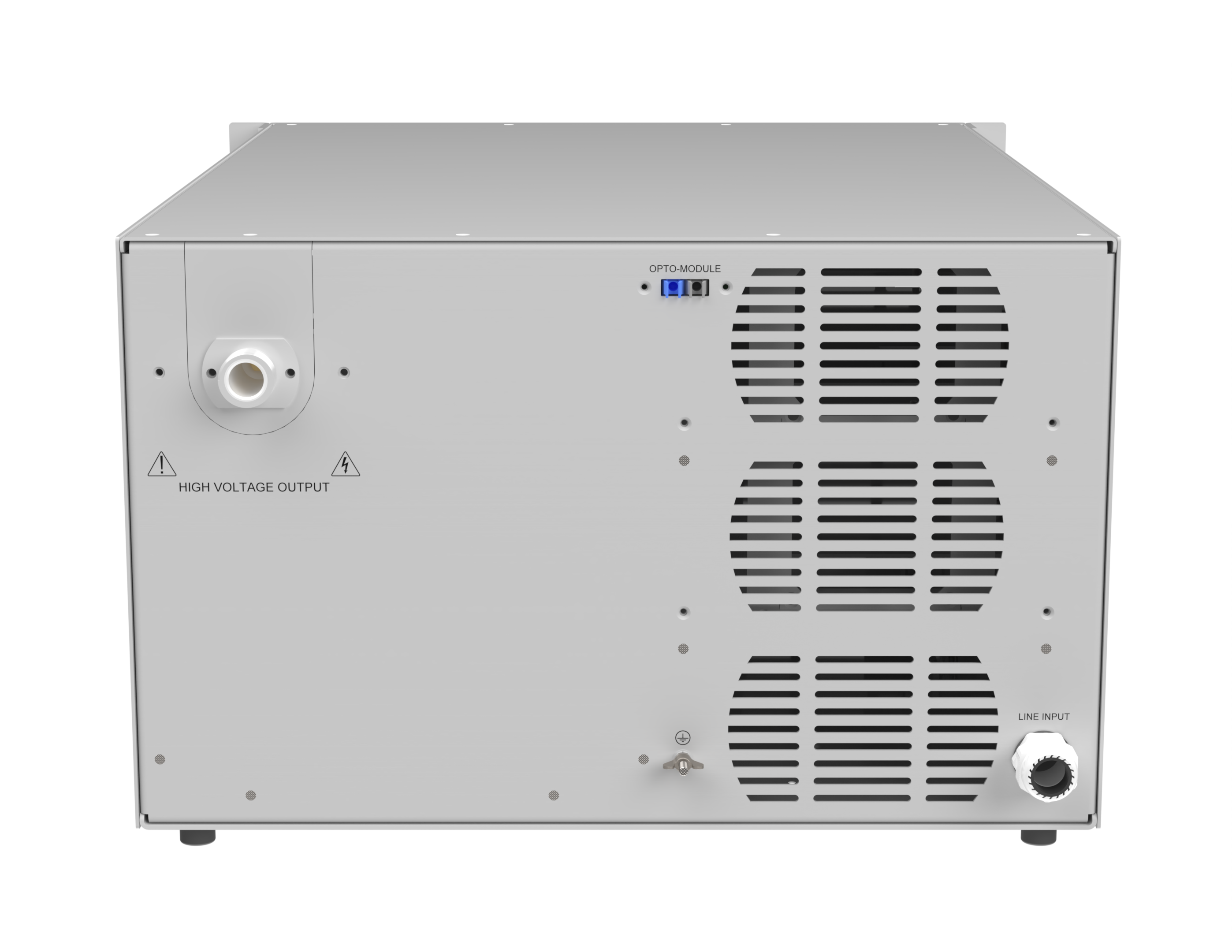

The SHVHP series of high-voltage power supplies for installation in a server rack includes models with positive and negative polarity with an output voltage from 1 kV to 160 kV with a power of 6 kW. All models are equipped with a set of protections with adjustable thresholds and support three modes of operation: current, voltage and power adjustment, which allows you to use these devices to solve a wide range of industrial and research tasks.
FEATURES
- Input power protection
- Overload and short circuit protection
- Output over/under voltage protection
- Arc protection
- Active PFC with 99% efficiency
- Analog interfaces with optical coupling DA-15, DA-25
- Support for digital interfaces RS-232, RS-485, USB, GPIB, Ethernet
- Intuitive user software
- Production, support and service - Russian Federation
APPLICATION
Electrostatic Filters, Semiconductor Material Processing, Electron Beam Welding, Capacitor Charging, High Power RF Transmitters, High Power Radar Systems, Ion Implantation, R&D, Test Equipment, Reference Power Supply
| The lineup | Rated power, W | Maximum output voltage at rated power, kV | Polarity | Files | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHVHP-6-XXX | 6000 | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 15 | 20 | 30 | Positive Negative Bipolar Switchable | |
| SHVHP-6-XXX | 6000 | 40 | 50 | 60 | 70 | 80 | 100 | 120 | 130 | 150 | 160 | - | ||
