HPS

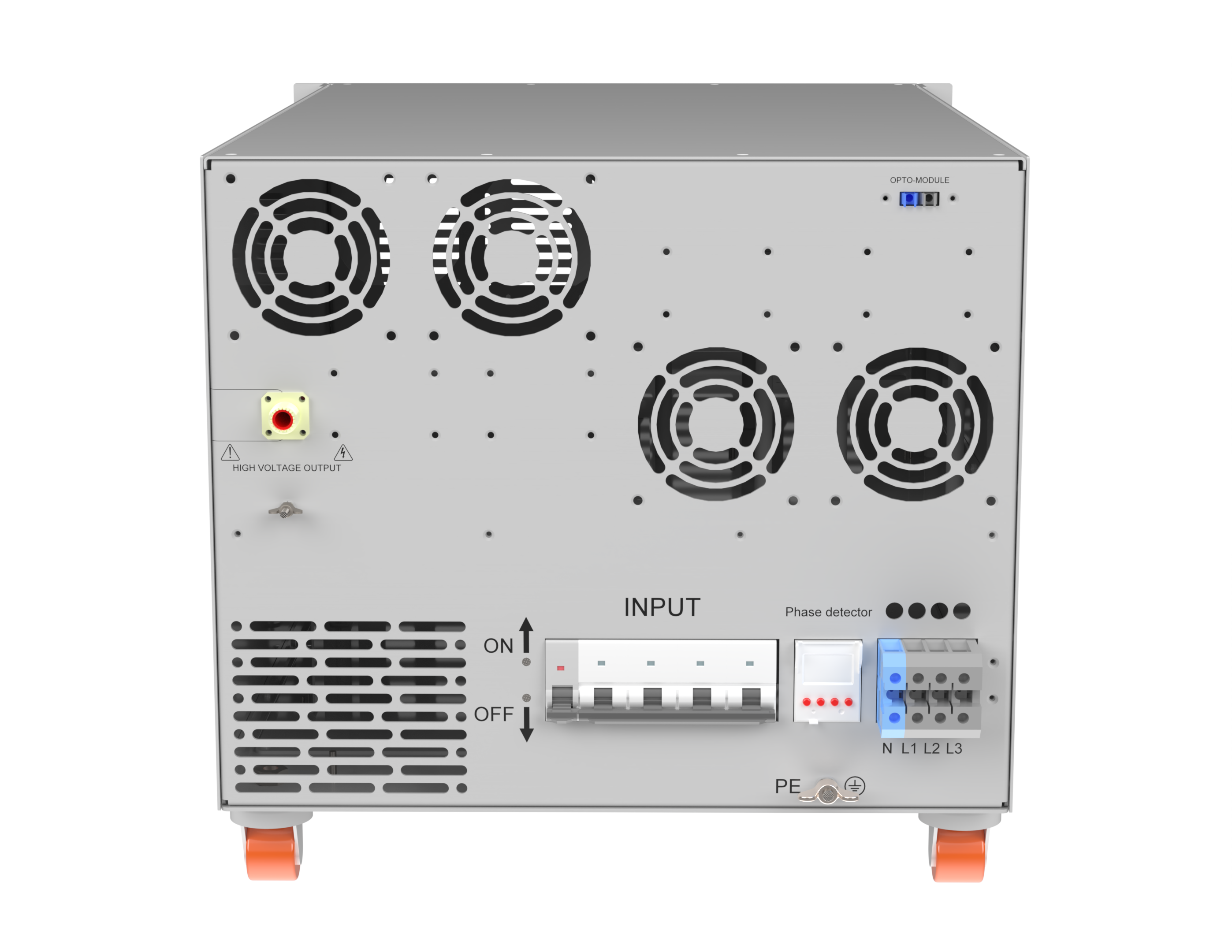

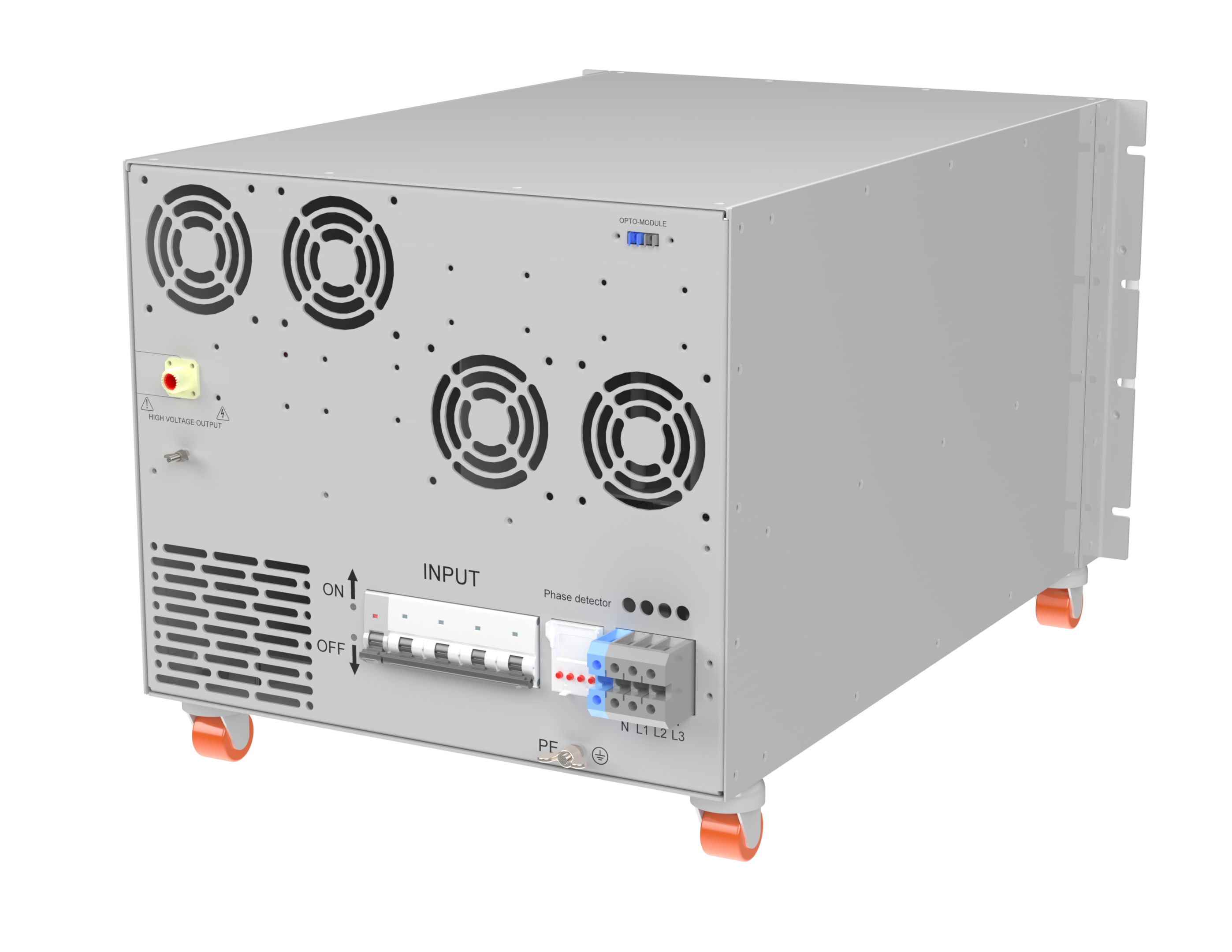

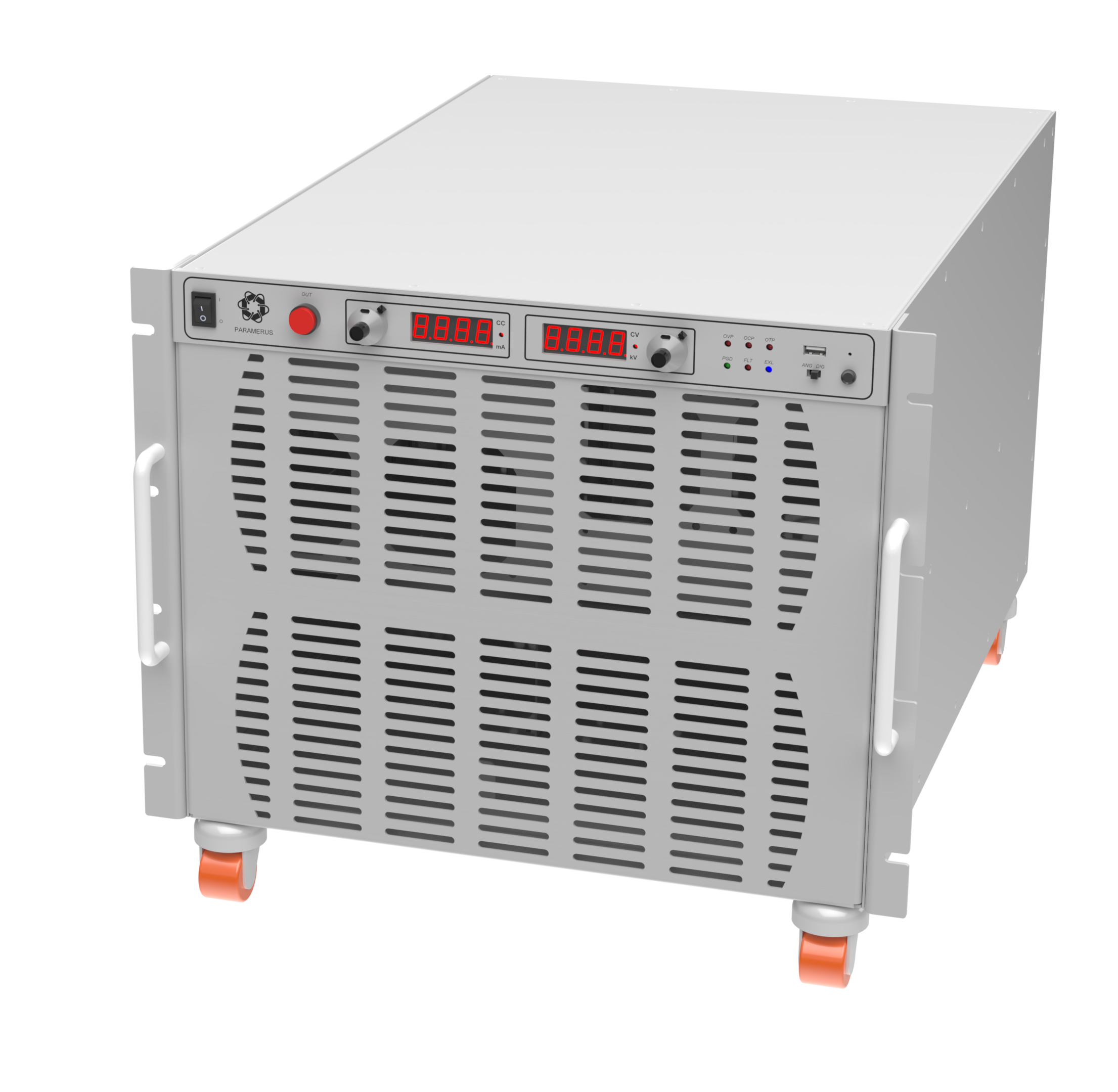

DESCRIPTION
The HPS series of high-power high-voltage power supplies includes models with positive and negative polarity with an output voltage from 1 kV to 160 kV and a power from 10 kW to 30 kW, with the possibility of parallel operation of units up to 120 kW. The converter is built on IGBT modules, which improves fault tolerance. All models are equipped with a set of protections with adjustable thresholds and support three modes of operation: current, voltage and power adjustment, which allows you to use these devices to solve a wide range of industrial and research tasks.
FEATURES
- Input power protection
- Overload and short circuit protection
- Output over/under voltage protection
- Arc protection
- Active PFC with 99% efficiency
- 30 kW in an 8U form factor
- Analog interfaces with optical coupling DA-15, DA-25
- Support for digital interfaces RS-232, RS-485, USB, Ethernet
- Arc shutdown counter
- Soft start duration
- Adjustable overload/power shutdown
- Adjustable arc recovery time
- Constant power mode control
APPLICATION
- Electrostatic Filters
- Semiconductor Material Processing
- Electron Beam Welding
- Capacitor Charging
- High Power RF Transmitters
- High Power Radar Systems
- Ion Implantation
- R&D
- Test Equipment
- Reference Power Supply
- X-ray Systems
| The lineup | Rated power, W | Maximum output voltage at rated power, kV | Peak-to-peak output voltage ripple, % | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPS-10-X* | 10000 | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 15 | 20 | 30 | 0.1 |
| 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 130 | 160 | |||
| HPS-20-X* | 20000 | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 15 | 20 | 30 | 0.1 |
| 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 130 | 160 | |||
| HPS-30-X* | 30000 | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 15 | 20 | 30 | 0.1 |
| 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 130 | 160 | |||
*Polarity: P – positive, N – negative, R – switchable, D – bipolar
