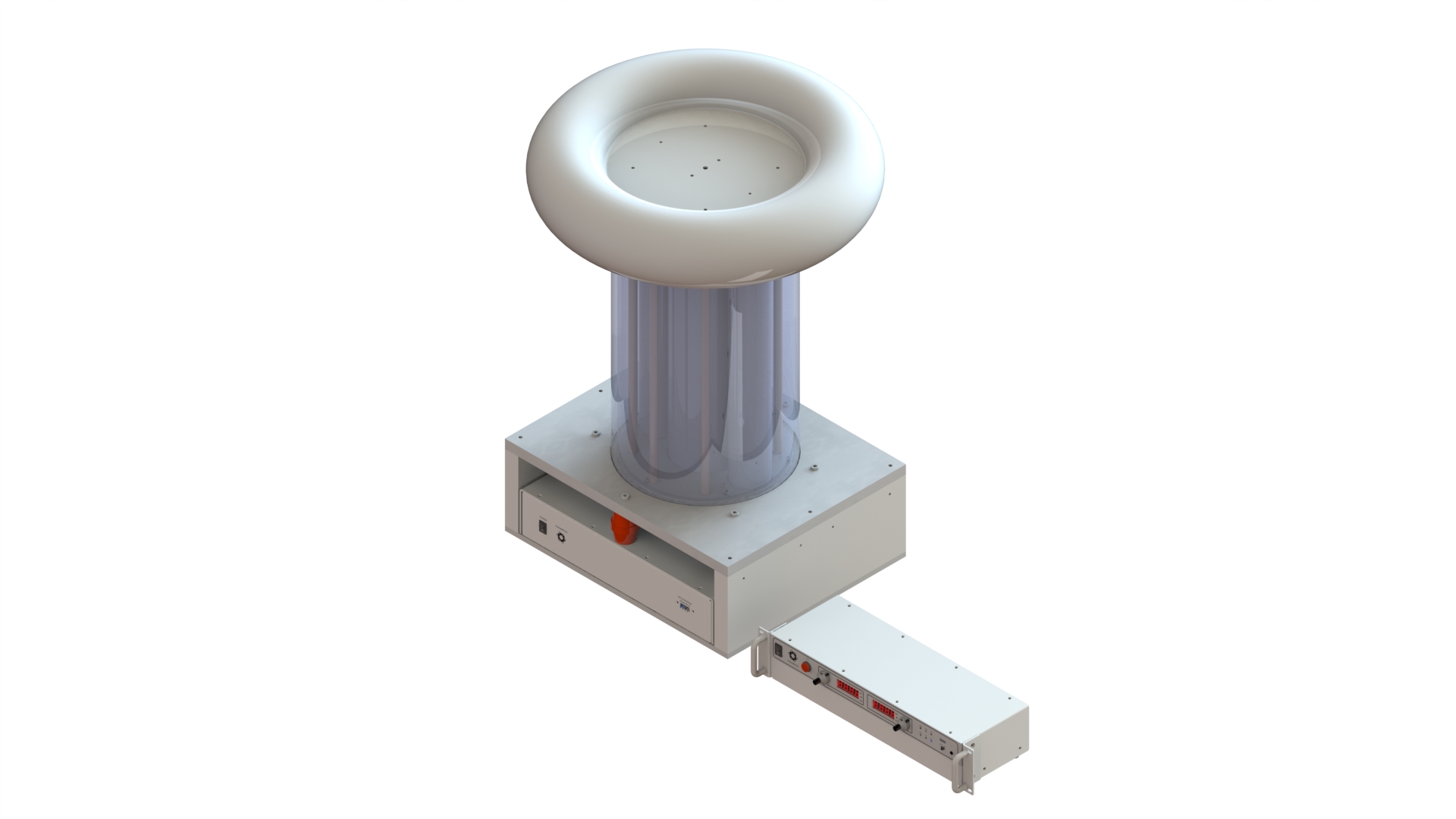

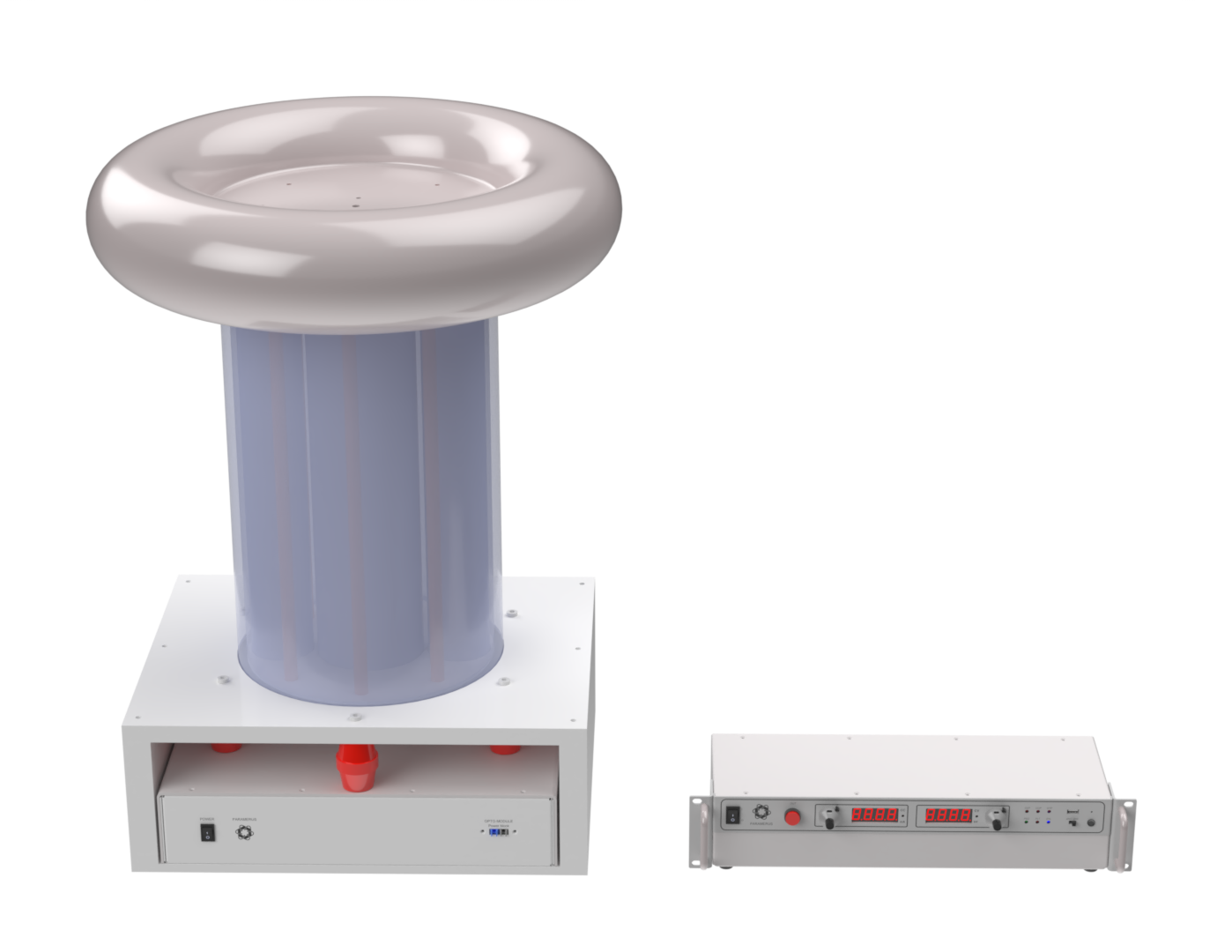

PHVHP
DESCRIPTION
The PHVHP series of high-voltage power supplies includes 18 models with positive or negative polarity with an output voltage from 200 kV to 450 kV with a power from 6 to 10 kW. All models are equipped with a set of protections with adjustable thresholds and support three operating modes: current, voltage and power regulation, which allows these devices to be used for a wide range of industrial and research tasks.
FEATURES
- Input power protection
- Overload and short circuit protection
- Output over/under voltage protection
- Arc protection
- Active PFC with 99% efficiency
- Analog interface with optocoupler (DA-15)
- Support for digital interfaces RS-232, RS-485, USB, GPIB, Ethernet
- Production, support and service - Russian Federation
APPLICATION
- Semiconductor Material Processing
- Electron Beam Welding
- Capacitor Charging
- X-Ray Systems
- Ion Implantation
- Particle Accelerators
- Electron Guns
- R&D, Test Equipment
- Reference Power Supply
| The lineup | Output voltage, kV | Maximum output current, mA | Peak-to-peak output voltage ripple, % | Files |
|---|---|---|---|---|
| PHVHP-2-200 | 200 | 10 | <0.1 | |
| PHVHP-2-250 | 250 | 8 | <0.1 | |
| PHVHP-2-300 | 300 | 7 | <0.1 | |
| PHVHP-2-350 | 350 | 5.7 | <0.1 | |
| PHVHP-2-400 | 400 | 5 | <0.1 | |
| PHVHP-2-450 | 450 | 4.4 | <0.1 |
