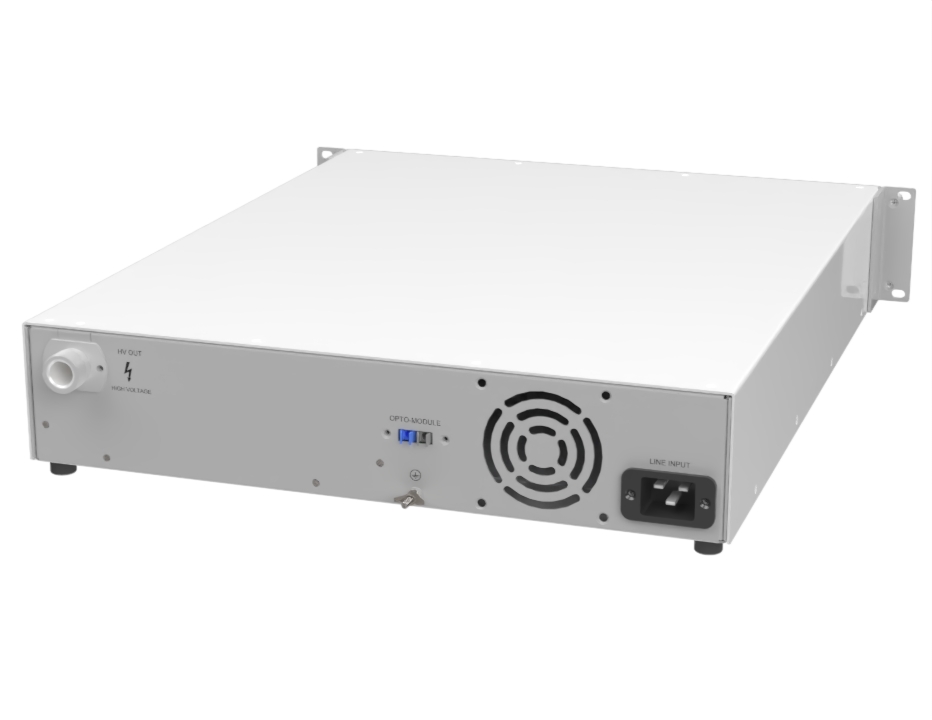

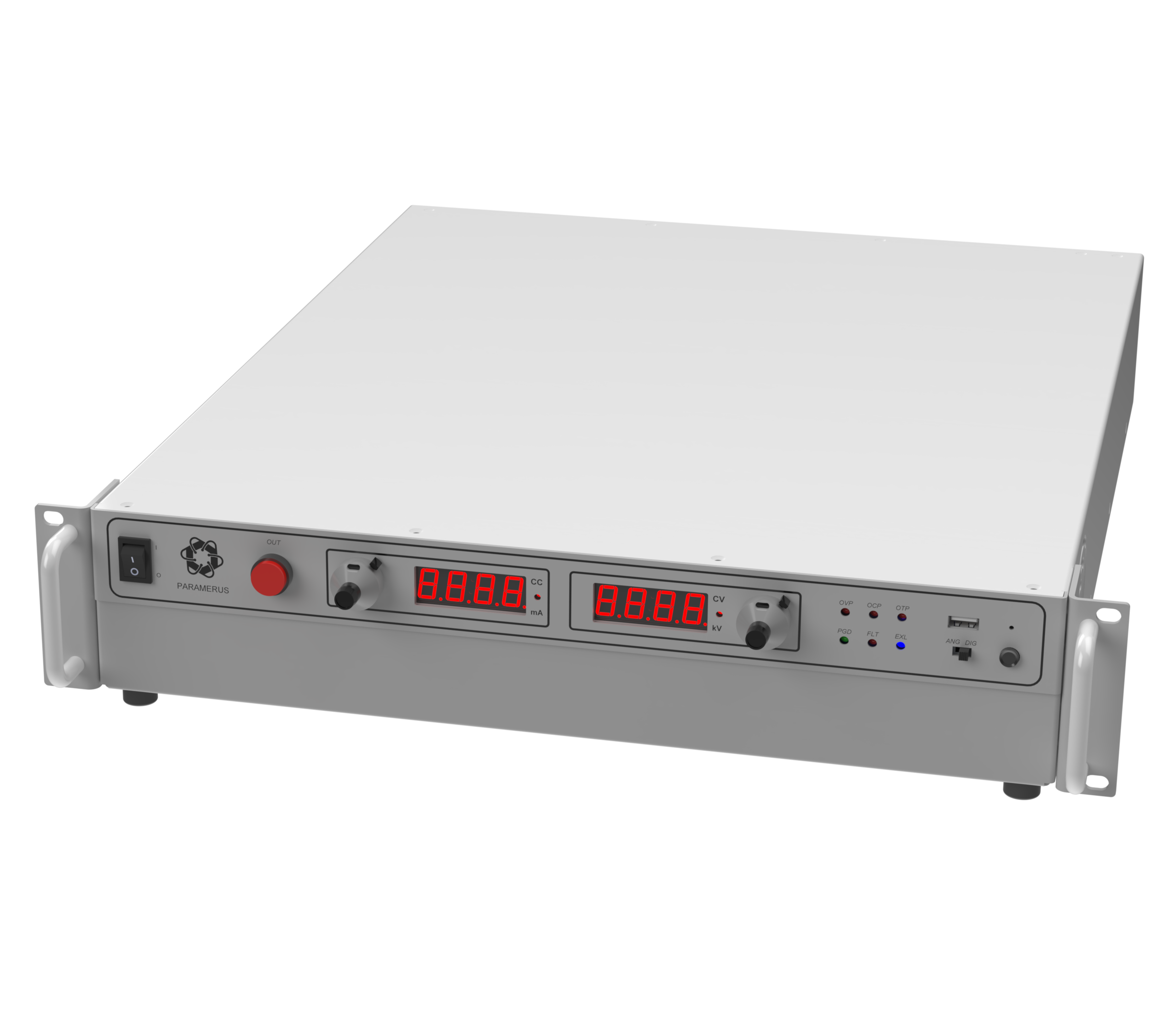

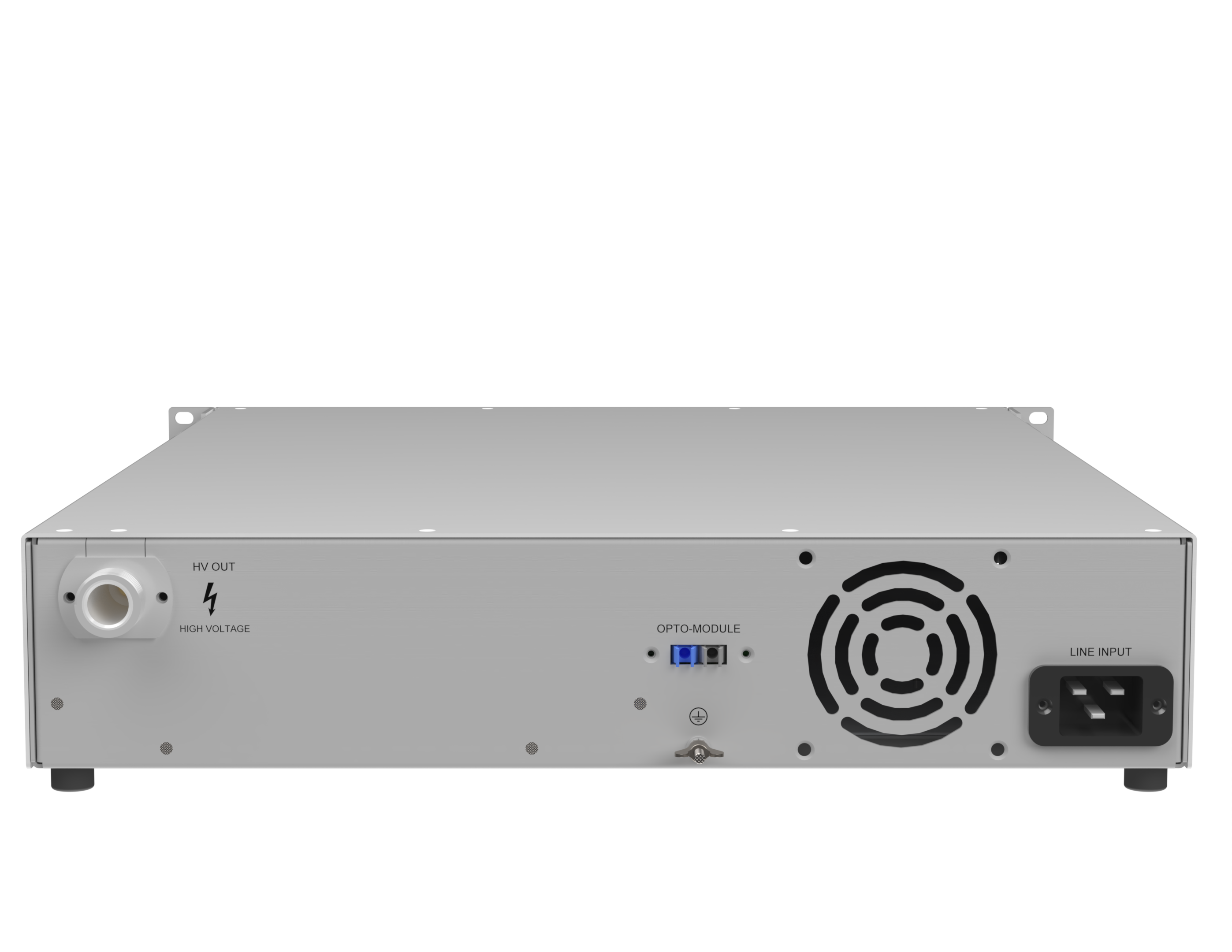

SHVHP-2
DESCRIPTION
The SHVHP series of high-voltage power supplies for installation in a server rack includes models with positive and negative polarity with an output voltage from 1 kV to 130 kV with a power of 2 kW. All models are equipped with a set of protections with adjustable thresholds and support three modes of operation: current, voltage and power adjustment, which allows you to use these devices to solve a wide range of industrial and research tasks.
FEATURES
- Input power protection
- Overload and short circuit protection
- Output over/under voltage protection
- Arc protection
- Active PFC with 99% efficiency
- Analog interfaces with optical coupling DA-15, DA-25
- Support for digital interfaces RS-232, RS-485, USB, Ethernet
- Intuitive user software
- Production, support and service - Russian Federation
- Russian industrial product
- No. 10778298 under RF Government Decree No. 719
APPLICATION
- Electrostatic Filters
- Semiconductor Material Processing
- Electron Beam Welding
- Capacitor Charging
- High Power RF Transmitters
- High Power Radar Systems
- Ion Implantation
- R&D
- Test Equipment
- Reference Power Supply
| The lineup | Rated power, W | Maximum output voltage at rated power, kV | Peak-to-peak output voltage ripple, % | Files | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHVHP-2-X* | 2000 | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 15 | 20 | 30 | <1 | |
| 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 130 | - | ||||
*Polarity: P – positive, N – negative, R – switchable, D – bipolar
