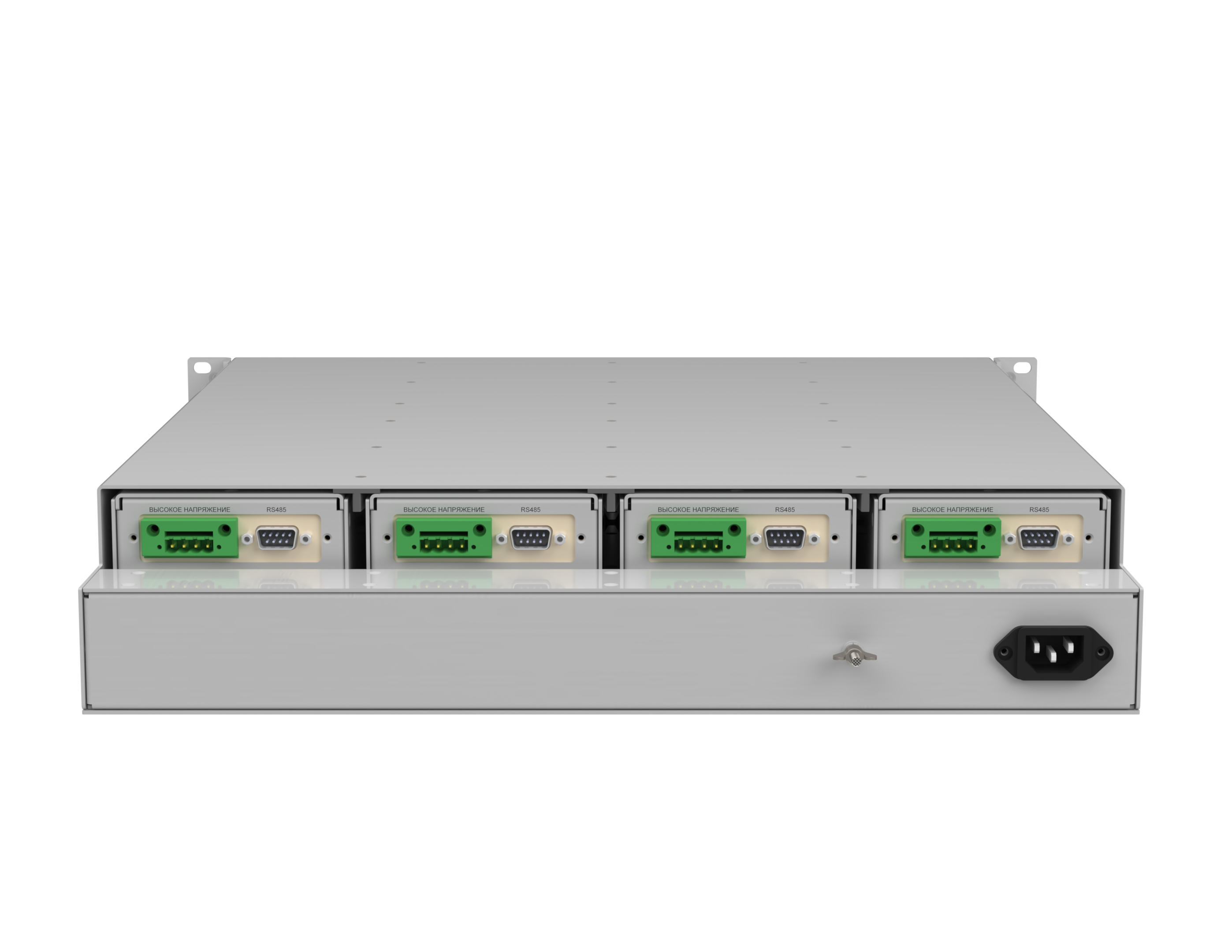

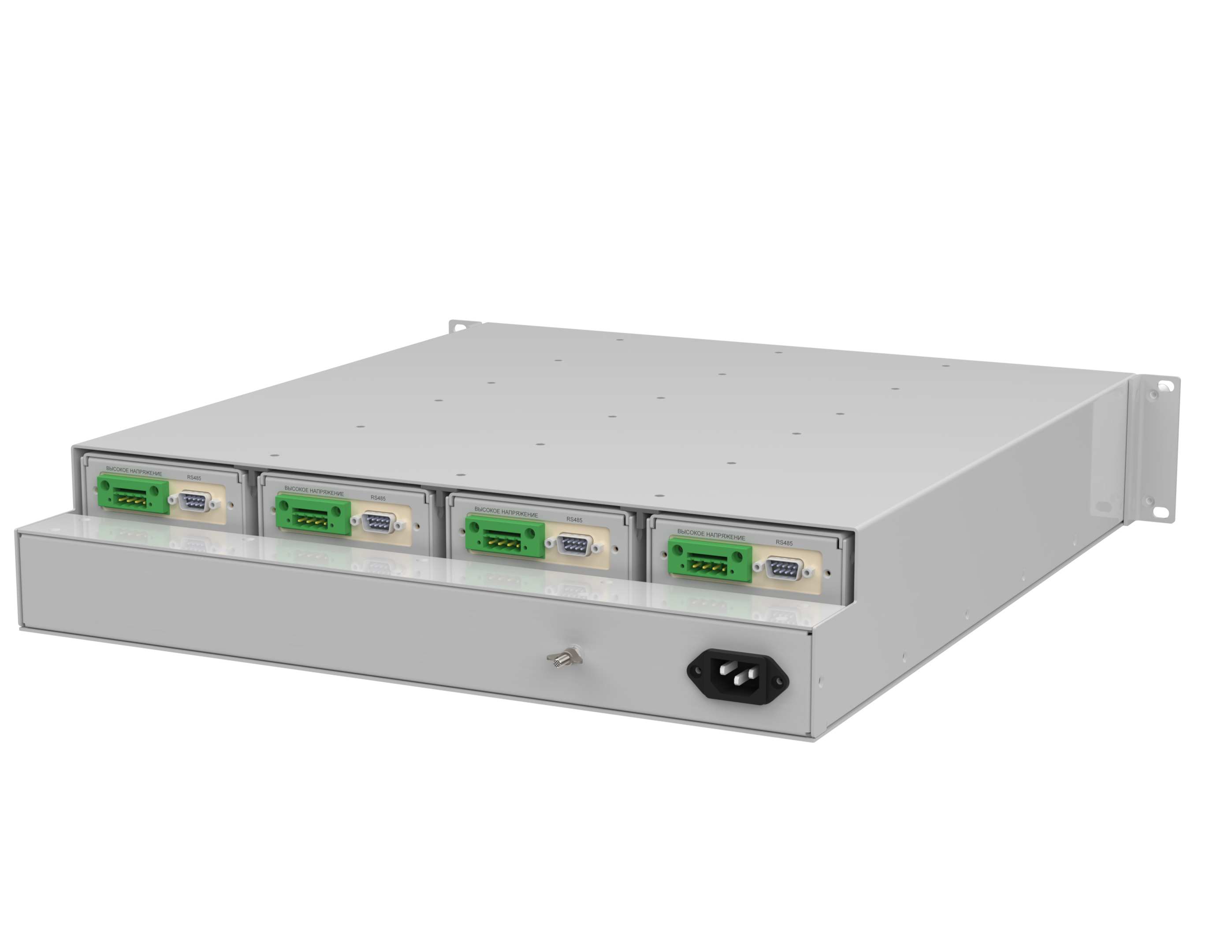

TWT-HVLP

Minimum price: 117 200 RUB

Quantity

Buy

Information

DESCRIPTION

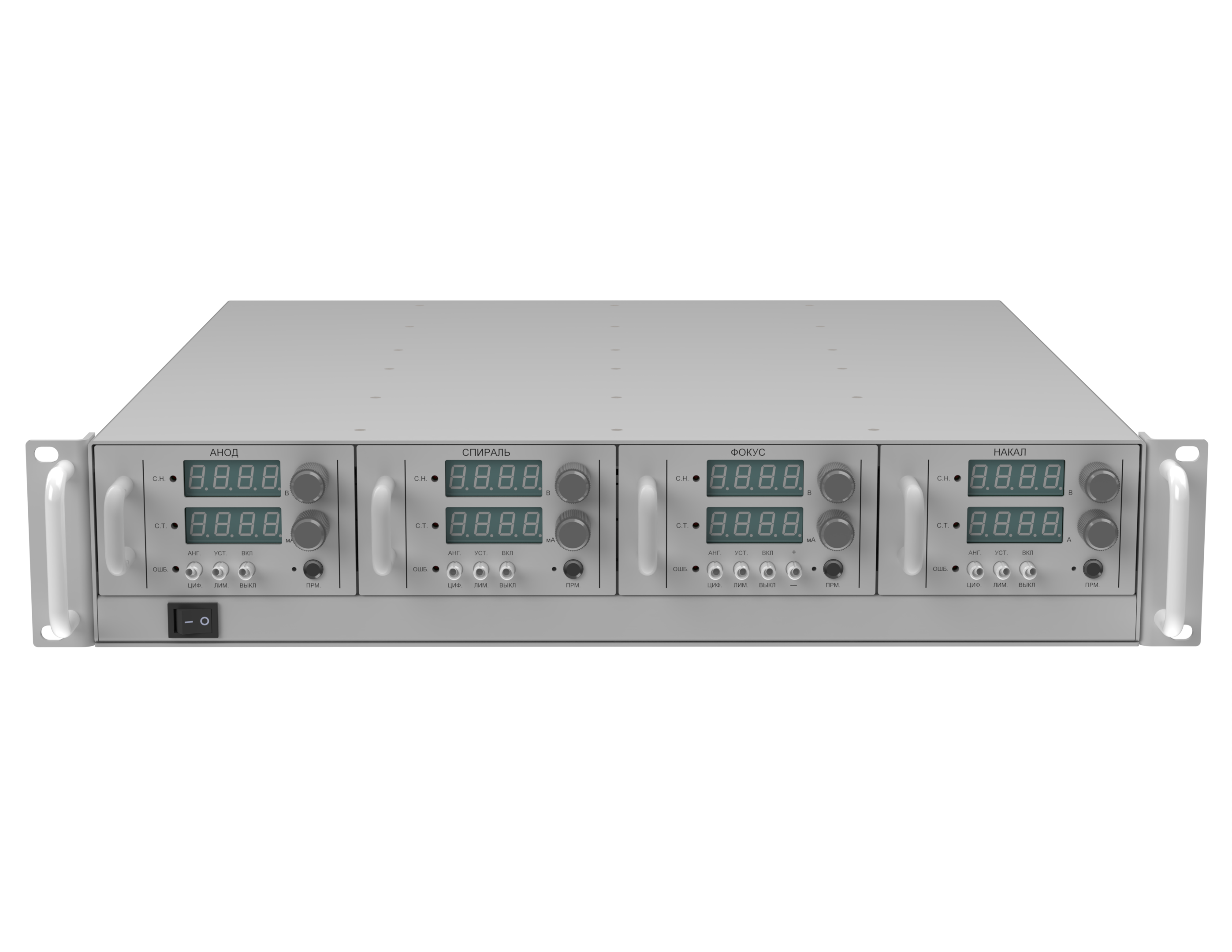

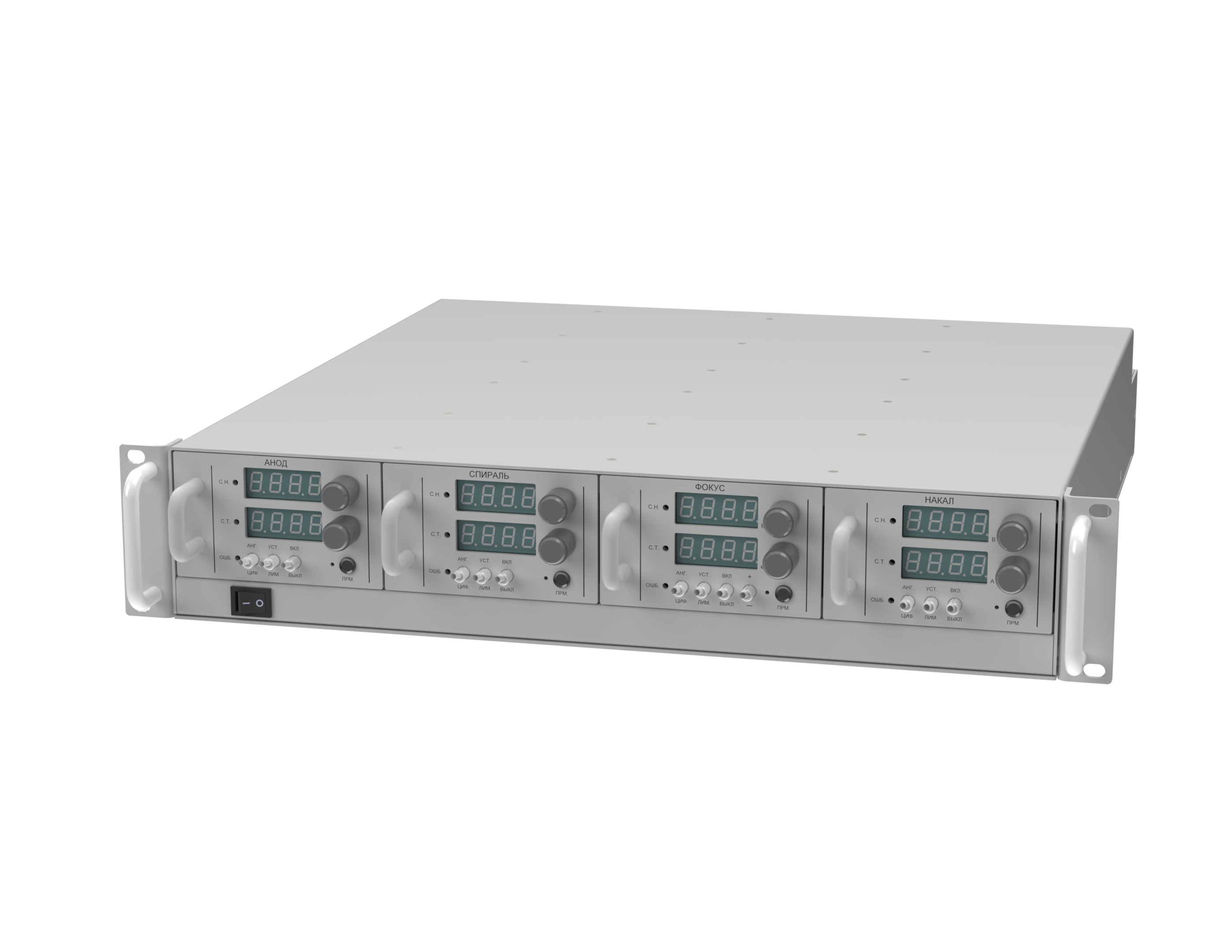

The TWT-HVLP series of high-voltage power supplies is designed to power travelling wave tubes (TWT). The source is four-channel, with separate adjustments for filament, focus, anode and helix from the front panel. The source contains 4 independent channels isolated from ground.

FEATURES

Isolated output channels
Output short circuit protection
Output overvoltage protection
Support for digital interfaces RS-232, RS-485, USB, Ethernet
Intuitive user software
Production, support and service - Russian Federation

APPLICATION

Travelling wave tubes (TWT)
R&D

The lineup	Output voltage adjustment, V				Output power, W
The lineup	Anode	Filament	Helix	Focus	Anode	Filament	Helix	Focus
TWT-HVLP-4	0 ÷ 4000 (+)	20	10 ÷ 1000 (+)	10 ÷ 200 (+/-)	20*	200*	50*	30*
TWT-HVLP-8	0 ÷ 8000 (+)
TWT-HVLP-12	0 ÷ 12000 (+)

* Can be increased up to 250 W.
