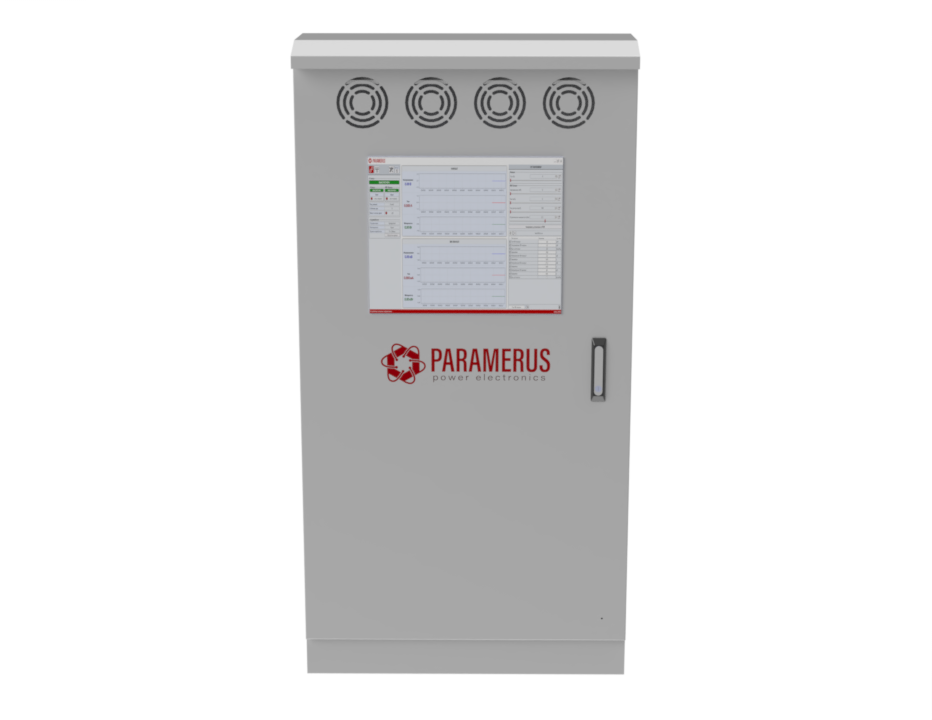

SHVHP-ESF
DESCRIPTION
The SHVHP-ESF series of high-voltage power supplies is designed to operate as part of electrostatic precipitators with a rated output voltage from 70 kV to 90 kV and power from 30 kW to 120 kW. All models are equipped with a set of protections with adjustable thresholds, and the operating mode of the source is specially adapted for electrostatic precipitators: high speed of response and a specialized operating algorithm.
FEATURES
- High-frequency energy conversion (up to 50 kHz)
- Modular architecture with flexible scaling of output power from 30 kW to 120 kW
- High stability: instability <0.01%, ripple <0.1%
- Full set of protections: arc discharge, short circuit, overload and overheating
- Active PFC with 99% efficiency
- Analog interfaces with optical coupling DA-15, DA-25
- Support for digital interfaces RS-232, RS-485, USB, Ethernet
- Intuitive user software
- Production, support and service - Russian Federation
APPLICATION
- Electrostatic precipitators
- R&D
| The lineup | Rated power, W | Maximum output voltage at rated power, kV | Peak-to-peak output voltage ripple, % | ||
|---|---|---|---|---|---|
| SHVHP-ESF-30-X* | 30000 | 70 | 80 | 90 | 0.1 |
| SHVHP-ESF-60-X* | 60000 | 70 | 80 | 90 | 0.1 |
| SHVHP-ESF-90-X* | 90000 | 70 | 80 | 90 | 0.1 |
| SHVHP-ESF-120-X* | 120000 | 70 | 80 | 90 | 0.1 |
* Polarity: P – positive, N – negative.
