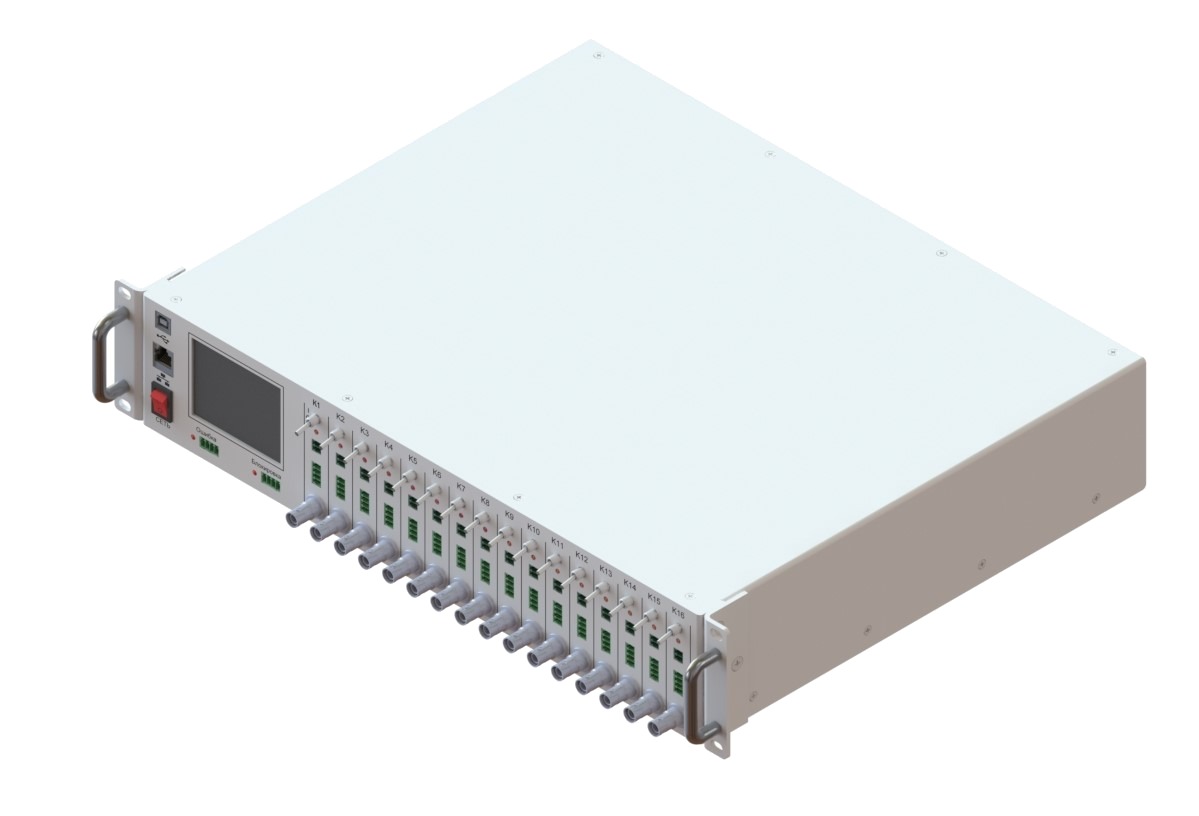

MC-HVLP
DESCRIPTION
The MC-HVLP series of multichannel high-voltage power supplies for installation in a server rack includes models with positive and negative polarity with an output voltage from 1 kV to 6 kV with a power from 1 W to 12 W per channel, possible versions with 8 or 16 channels. All channels are independent, with the possibility of user-defined output current and voltage from 0 to maximum and support for control and monitoring of output current and voltage parameters. All models are equipped with a set of protections with adjustable trip thresholds and support the mode of operation of both voltage and current control, which allows you to use these devices to solve a wide range of industrial and research tasks.
FEATURES
- Input power protection
- Overload and short circuit protection
- Output over/under voltage protection
- Arc protection
- Active PFC with 99% efficiency
- Analog interface with optocoupler (DA-15)
- Support for digital interfaces RS-232, RS-485, USB, Ethernet
- Production, support and service - Russian Federation
APPLICATION
- Electrostatic Filters
- Semiconductor Material Processing
- Electron Beam Welding
- Capacitor Charging
- High Power RF Transmitters
- High Power Radar Systems
- Ion Implantation
- R&D
- Test Equipment
- Reference Power Supply
| The lineup | Number of channels | Rated power of each channel | Maximum output voltage at rated power, kV | Output voltage adjustment | Output voltage ripple | Files | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| MC-HVLP-X-1 | 8 | 16 | 1.0 W | 1 | 2 | 4 | 6 | From 0 to Vout max. | 5 mV p-p | |
| MC-HVLP-X-2.5 | 8 | 16 | 2.5 W | 1 | 2 | 4 | 6 | From 0 to Vout max. | 5 mV p-p | |
| MC-HVLP-X-4 | 8 | 16 | 4 W | 1 | 2 | 4 | 6 | From 0 to Vout max. | 7 mV p-p | |
| MC-HVLP-X-6 | 8 | 16 | 6 W | 1 | 2 | 4 | 6 | From 0 to Vout max. | 8 mV p-p | |
| MC-HVLP-X-12 | 8 | 16 | 12 W | 1 | 2 | 4 | 6 | From 0 to Vout max. | 8 mV p-p | |
