L-HVLP-UN
DESCRIPTION

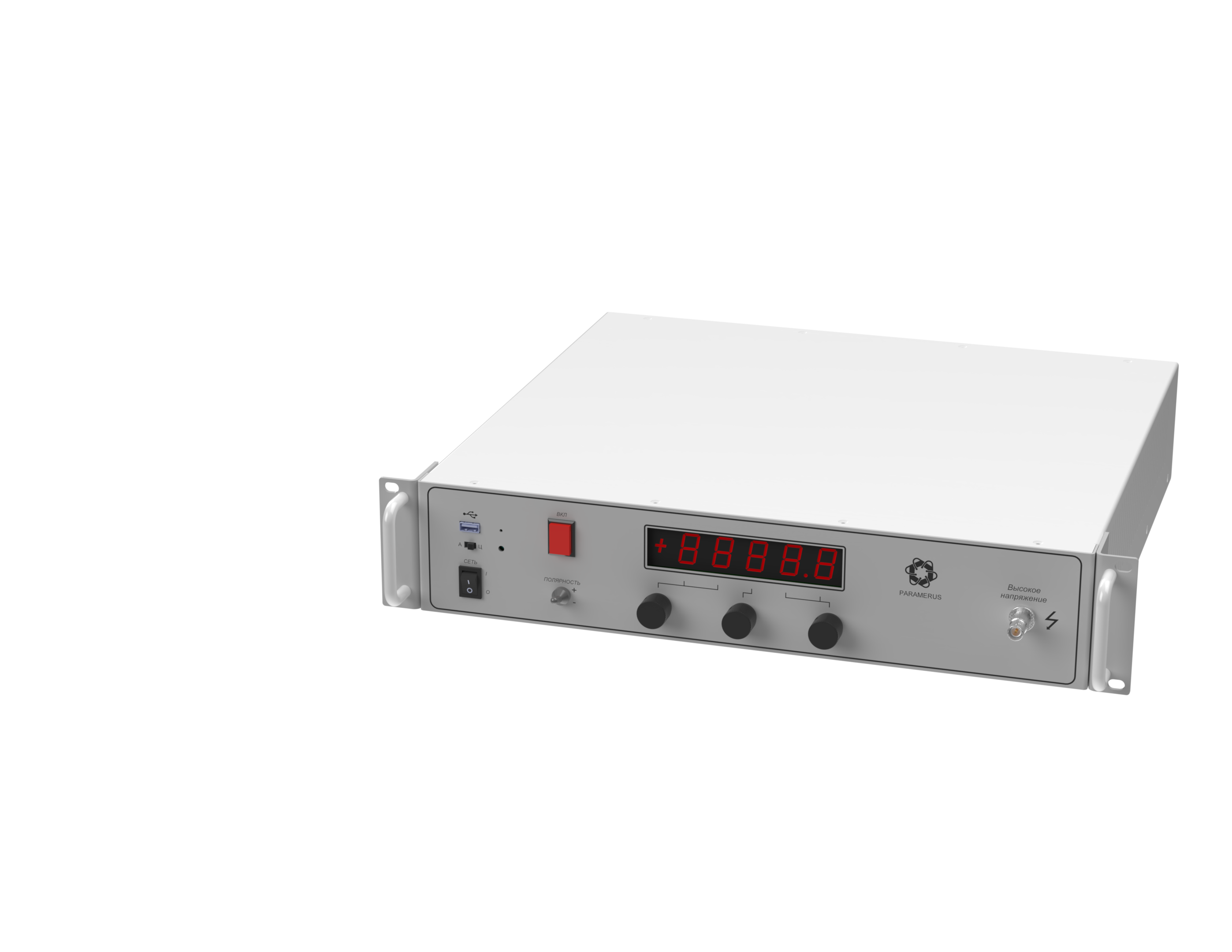

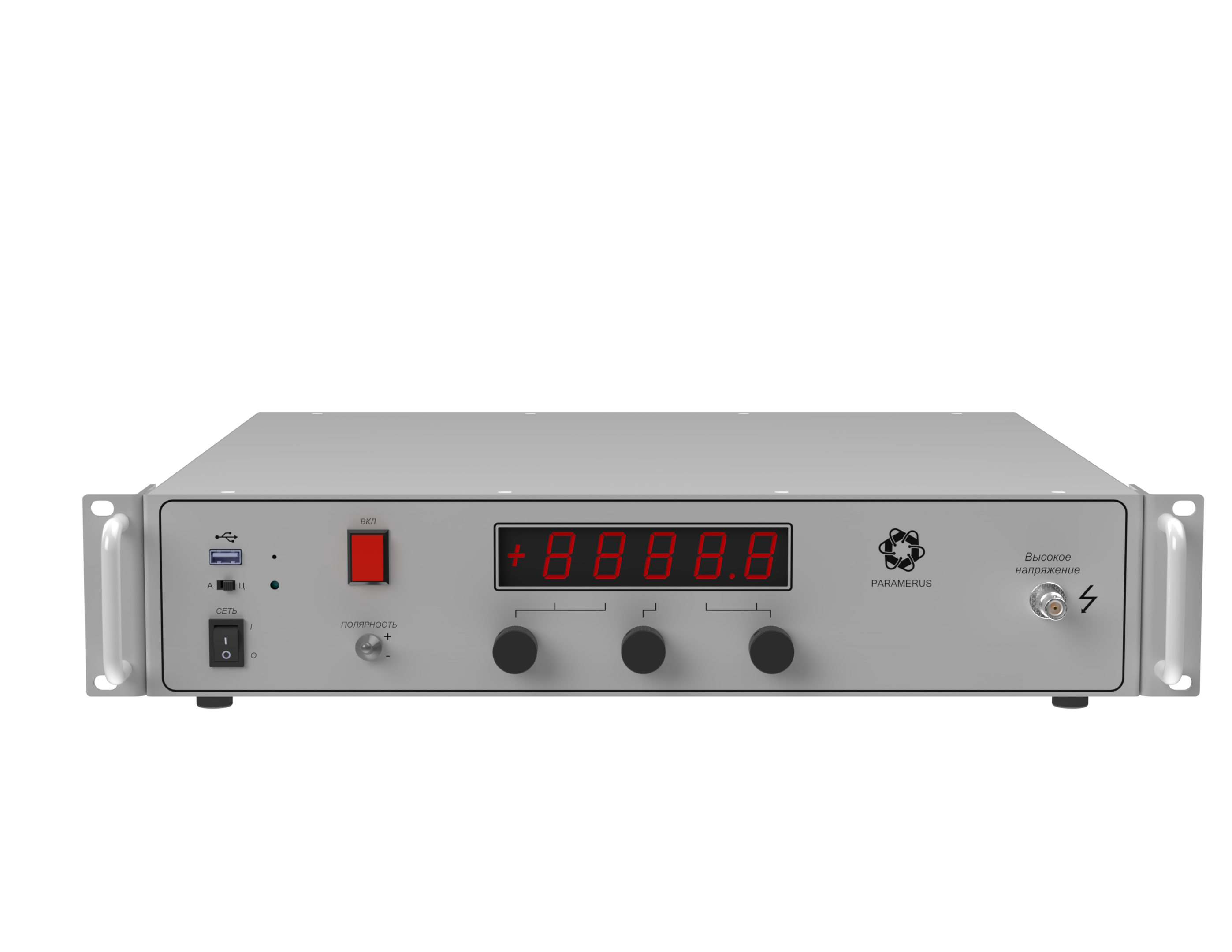

The L-HVLP-UN series of laboratory precision high-voltage power supplies is designed to power devices that require a high, stable voltage with ultra-low ripple and low temperature and time drift of parameters. For accurate and fast setting of the output voltage, three encoders are located on the front panel, each responsible for separate digits of the five-digit value. The minimum output voltage adjustment step is 100 mV, the maximum is 100 V.
FEATURES
- Ultra-low ripple (< 750 µV)
- Low EMP
- Low temperature drift
- Output voltage adjustment 0 - 100%
- Transient time adjustment
- Output voltage polarity reversal
- Short circuit protection
- Arc protection
- Output voltage protection
- Temperature protection
- Analog and digital control interfaces available
APPLICATION
- Photomultiplier tubes (PMT)
- Photodiodes (PD)
- Multi-pixel photon counters (MPPC)
- Microchannel plates (MCP)
- Scanning electron microscopes
- Mass spectrometers
- Gas chromatographs
- Spectrometers
- Electrostatic cartridges
- PZT drivers
- Pulse generators
- Electro-optical modulators
- Fiber optic detectors
- Particle detectors
- Laser rangefinders
- Silicon detectors (SiD)
- Ion chamber detectors
- Geiger-Muller tubes/counters (GM)
- Avalanche photodiodes (APD)
- Channel electron multipliers
- Silicon photomultipliers (SiPM)
- Image intensifiers (II and IIT)
- Material synthesis
- Laboratory equipment
- Power/voltage reference
| The lineup | Rated power, W | Maximum output current, mA | Peak-to-peak output voltage ripple, µV | Files | ||
|---|---|---|---|---|---|---|
| 0 – 1000 V | 0 – 2000 V | 0 – 3100 V | ||||
| L-HVLP-UN-X-15.5 | 15.5 | 15.5 | 7.8 | 5 | <750 | |
| L-HVLP-UN-X-31 | 31 | 31 | 15.5 | 10 | ||
X — polarity: RP switchable, P positive, N negative. The RP version is available for 15.5 W only. Output current setting tolerance ±0.1 mA.
