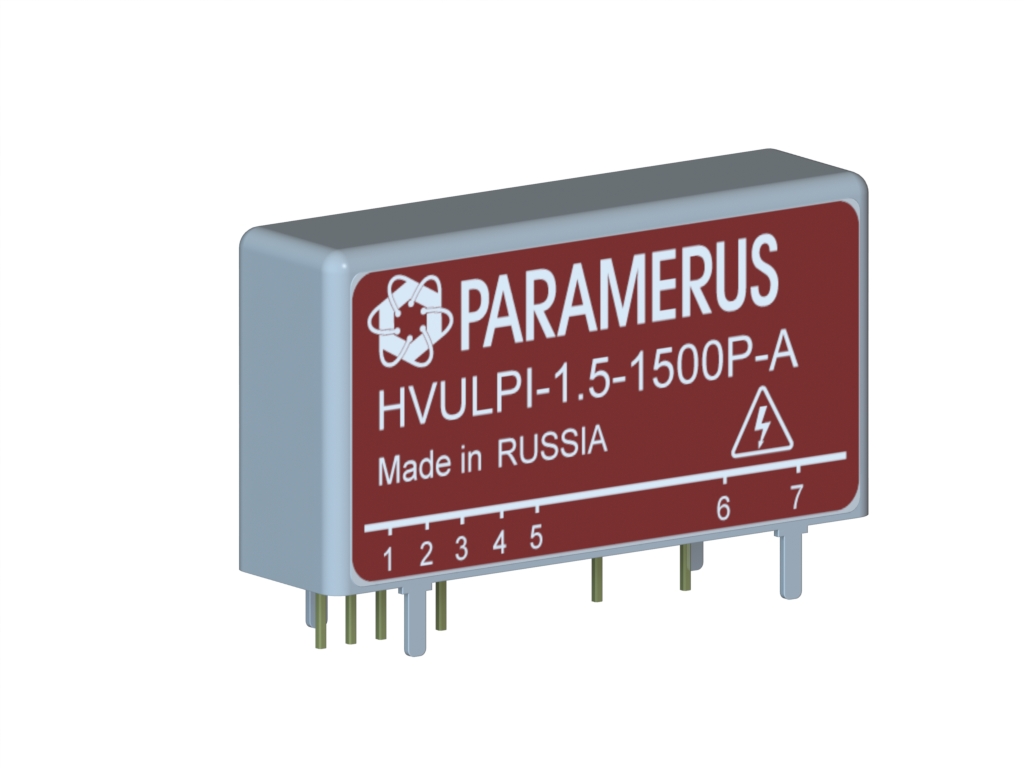

HVULPI
DESCRIPTION
The HVULPI series of isolated, adjustable precision high-voltage power supplies includes models with an output voltage from 250 to 1500 V and rated power from 0.1 to 1.5 W. Full galvanic isolation of the high-voltage output allows the module to be connected in a floating-potential configuration, or the required supply polarity relative to ground to be set by grounding one terminal. All products in this series are characterized by low pulsations and high transient rates, and have excellent dynamic characteristics over the entire range of permissible loads and temperatures.
The case design is designed for installation on a printed circuit board/frame/wall, meets the requirements of UL94V 0 and is UV resistant. The overall dimensions of the housing are not subject to significant changes in the vacuum environment. The shielded design of the housing ensures the product's resistance to high-intensity electric and magnetic fields, as well as a low level of EMR.
FEATURES
- Full galvanic isolation
- Short transient times
- Low EMP
- Low temperature drift of output parameters
- Output voltage adjustment 0 - 100%
- Short circuit protection
- Output voltage protection
- Temperature protection
- Solder pins for PCB
- Warranty 1 year
APPLICATION
Mass spectrometers, Electrophoresis, Capacitor charging, Field Generators, Electrostatic cartridges, PZT drivers
| The lineup | Rated power | Maximum output voltage at rated power, V | Output voltage adjustment | Output voltage ripple | Files | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HVULPI-0.1-X | 0.1 W | 250 | 400 | 500 | 600 | 800 | 1000 | 1200 | 1500 | From 0 to Vout max. | 0.5% Vp-p | |
| HVULPI-0.25-X | 0.25 W | 250 | 400 | 500 | 600 | 800 | 1000 | 1200 | 1500 | From 0 to Vout max. | 0.5% Vp-p | |
| HVULPI-0.5-X | 0.5 W | 250 | 400 | 500 | 600 | 800 | 1000 | 1200 | 1500 | From 0 to Vout max. | 0.5% Vp-p | |
| HVULPI-0.75-X | 0.75 W | 250 | 400 | 500 | 600 | 800 | 1000 | 1200 | 1500 | From 0 to Vout max. | 0.5% Vp-p | |
| HVULPI-1-X | 1 W | 250 | 400 | 500 | 600 | 800 | 1000 | 1200 | 1500 | From 0 to Vout max. | 0.5% Vp-p | |
| HVULPI-1.25-X | 1.25 W | 250 | 400 | 500 | 600 | 800 | 1000 | 1200 | 1500 | From 0 to Vout max. | 0.5% Vp-p | |
| HVULPI-1.5-X | 1.5 W | 250 | 400 | 500 | 600 | 800 | 1000 | 1200 | 1500 | From 0 to Vout max. | 0.5% Vp-p | |
