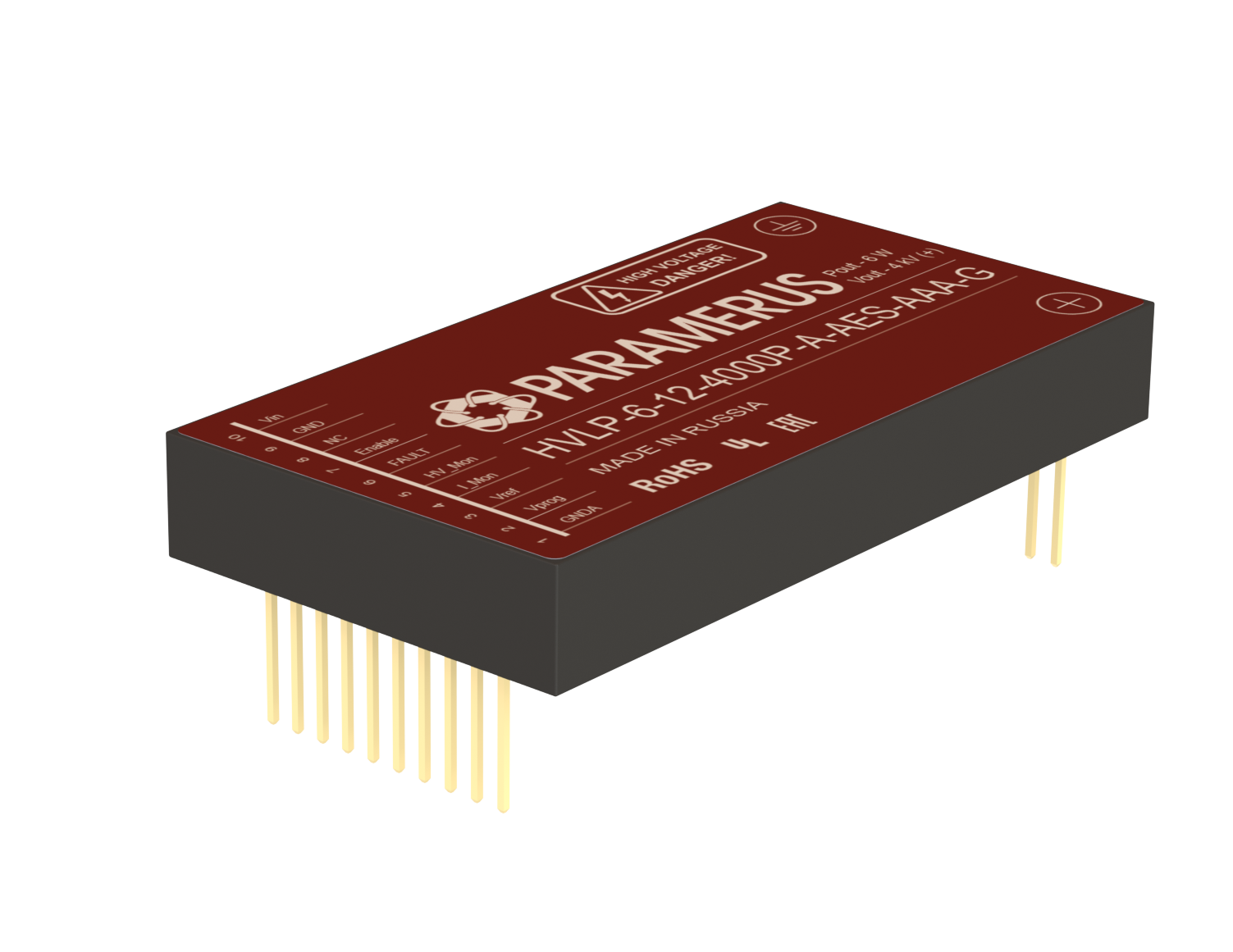

HVLP
DESCRIPTION
The HVLP series of regulated precision high-voltage power supplies includes models with a maximum output voltage of up to 6000 V, power up to 6 W, with the possibility of user setting the output voltage from 0 to the maximum value and support for monitoring output current and voltage. All products in this series are characterized by ultra-low ripple and high transient speed, have excellent dynamic characteristics over the entire range of allowable loads and temperatures.
All devices are equipped with a set of protections, including short circuit protection at the output for an unlimited time and a short circuit detector inside the circuit, as well as a status and fault indication system, which allows these power supplies to be used in the most critical applications.

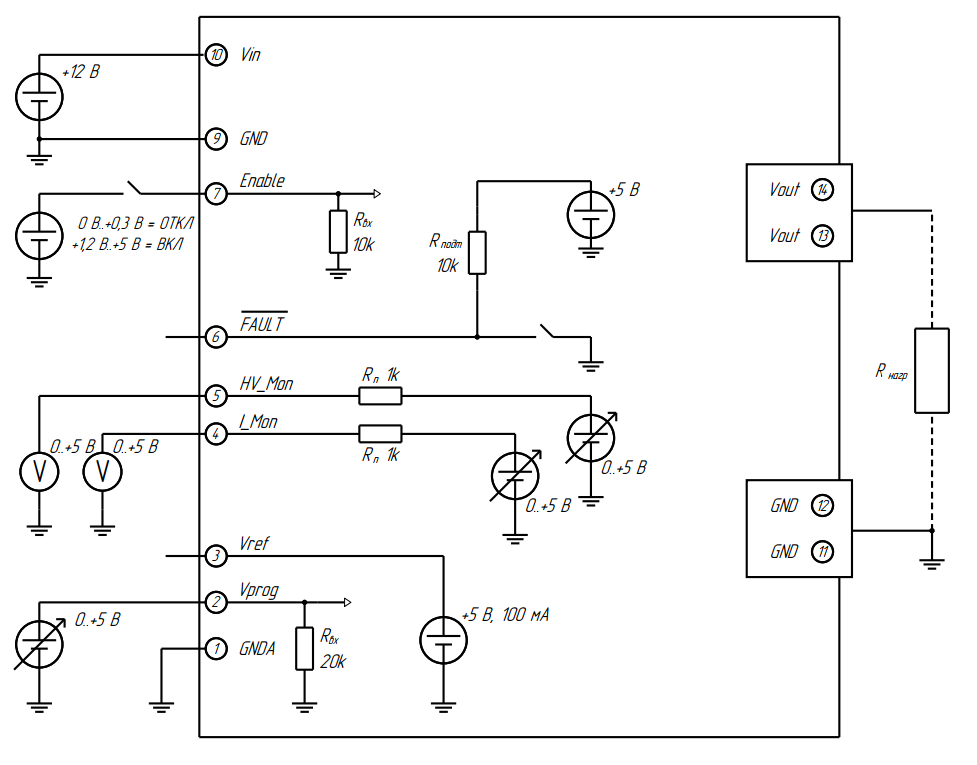

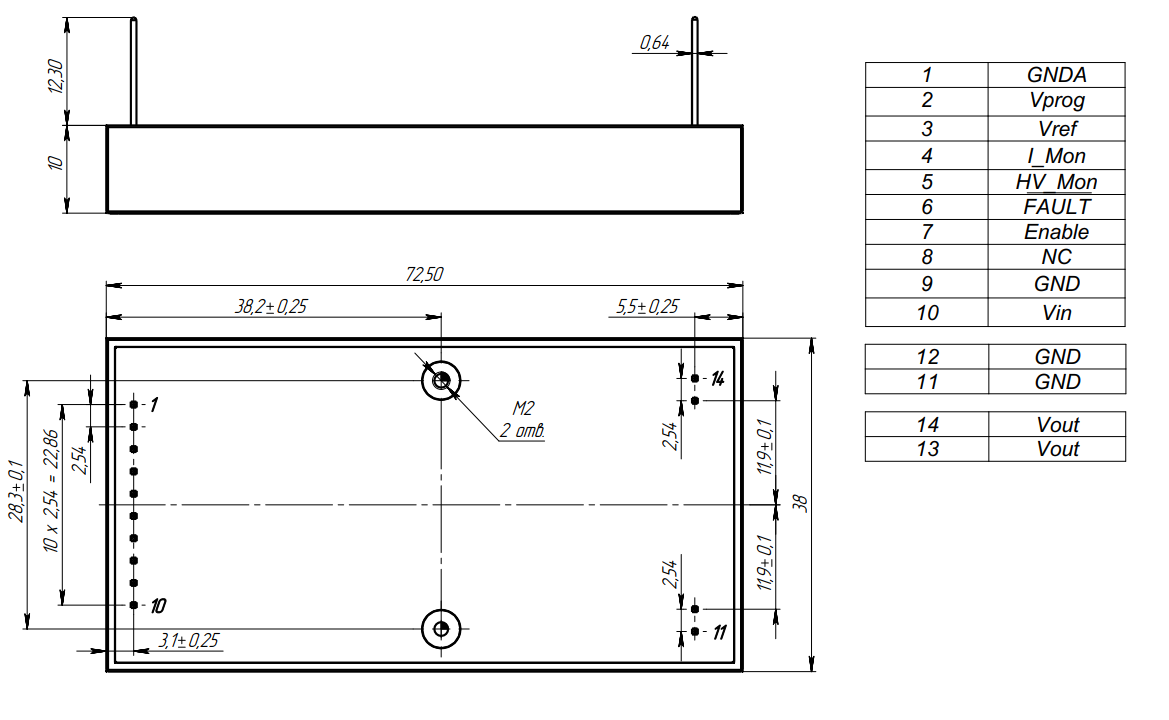

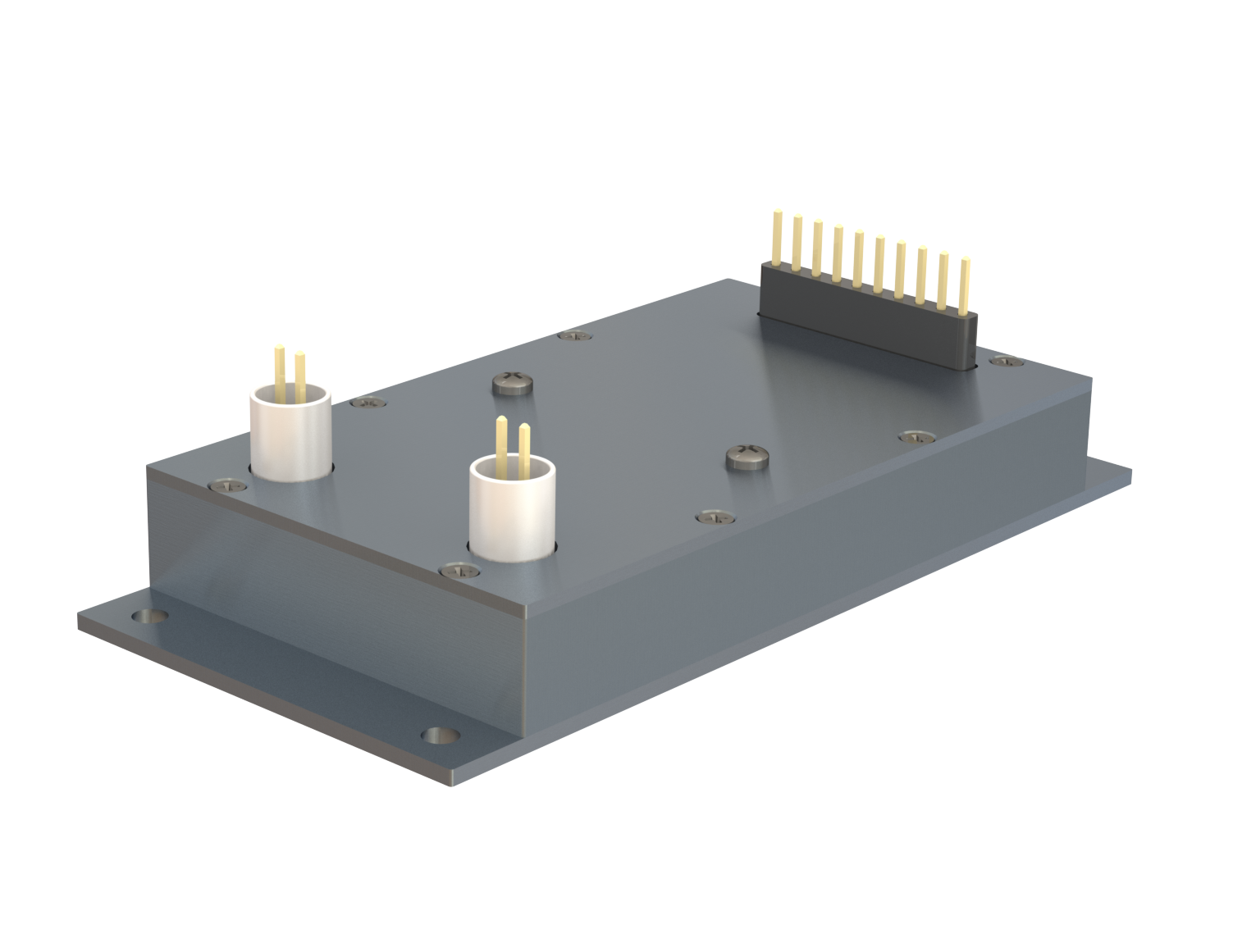

The enclosure is designed for installation on a printed circuit board/frame/wall, meets UL94-V0 requirements and is UV resistant. Overall dimensions of the case are not subject to significant changes in the vacuum environment. Optionally, a shielded housing is available, which ensures the resistance of the product to high electric and magnetic fields, as well as a low level of EMI.
Devices with fixed output voltage are available on request.
FEATURES
- High efficiency - up to 80%
- Ultra-low ripple (<0.005%)
- Short transient times
- Low EMP
- Low temperature drift
- Output voltage adjustment 0 - 100%
- Short circuit protection
- Input/output voltage protection
- Temperature protection
- Solder pins for PCB
- Warranty 1 year
- Smallest case size in its class on the global market
- Russian industrial product
- No. 10778294 under RF Government Decree No. 719
APPLICATION
- Scanning electron microscopes
- Mass spectrometers
- Gas chromatographs
- Spectrometers
- Electrostatic cartridges
- PZT drivers
- Pulse generators
- Electro-optical modulators
- Fiber optic detectors
- Particle detectors
- Laser rangefinders
- Silicon detectors (SiD)
- Ion chamber detectors
- Geiger-Muller tubes/counters (GM)
- Avalanche photodiodes (APD)
- Photomultiplier tubes (PMT)
- Photodiodes (PD)
- Multi-pixel photon counters (MPPC)
- Channel electron multipliers
- Silicon photomultipliers (SiPM)
- Image intensifiers (II and IIT)
- Microchannel plates (MCP)
- Material synthesis
- R&D, test equipment
- Power/voltage reference
| The lineup | Rated power, W | Maximum output voltage at rated power, V | Peak-to-peak output voltage ripple, % | Files | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HVLP-1 | 1.0 | 32 | 65 | 125 | 250 | 500 | - | - | - | - | - | <0.05 | |
| - | - | - | - | - | 1000 | 2000 | 2500 | 4000 | 6000 | <0.0051 | |||
| HVLP-2.5 | 2.5 | 32 | 65 | 125 | 250 | 500 | - | - | - | - | - | <0.05 | |
| - | - | - | - | - | 1000 | 2000 | 2500 | 4000 | 6000 | <0.0051 | |||
| HVLP-4 | 4.0 | 32 | 65 | 125 | 250 | 500 | 1000 | 2000 | 2500 | 4000 | 6000 | <0.05 | |
| HVLP-6 | 6.0 | 32 | 65 | 125 | 250 | 500 | 1000 | 2000 | 2500 | 4000 | 6000 | <0.05 | |
1 — this ripple level is achieved with external capacitors installed at the high-voltage output, see section 2.3 of the datasheet.
