HVMP
DESCRIPTION
The HVMP series of regulated high-voltage power supplies includes models with a maximum output voltage from 125 V to 40000 V, power from 10 to 40 W, with the possibility of user setting the output current and voltage from 0 to the maximum value and support for monitoring output current and voltage. All products in this series are characterized by low ripple and high transient speed, have excellent dynamic characteristics over the entire range of allowable loads and temperatures.
All devices are equipped with a set of protections, including arc protection and short circuit protection at the output for an unlimited time, output overvoltage protection and a short circuit detector inside the circuit, as well as status and fault indication, which allows these power supplies to be used in the most critical applications.

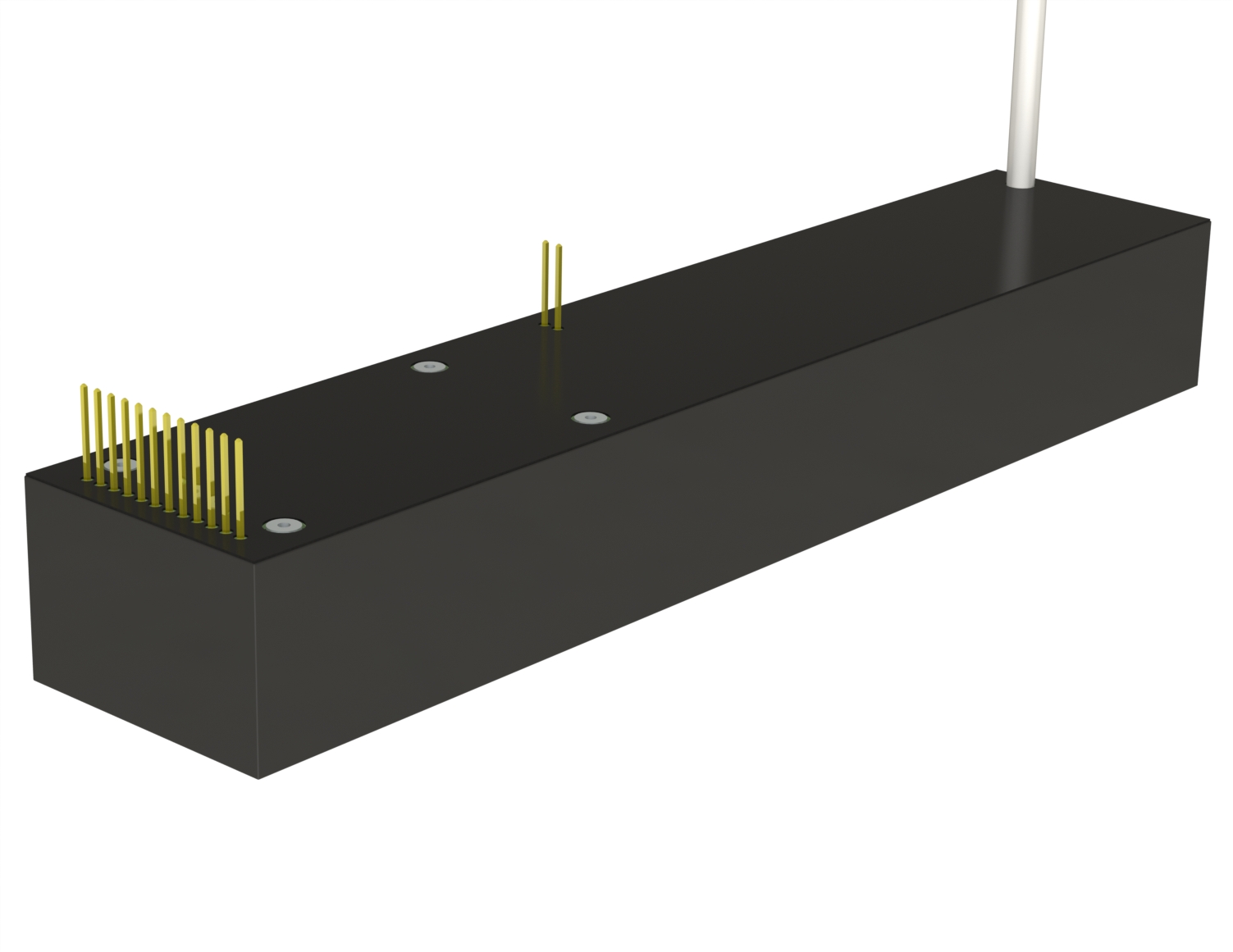

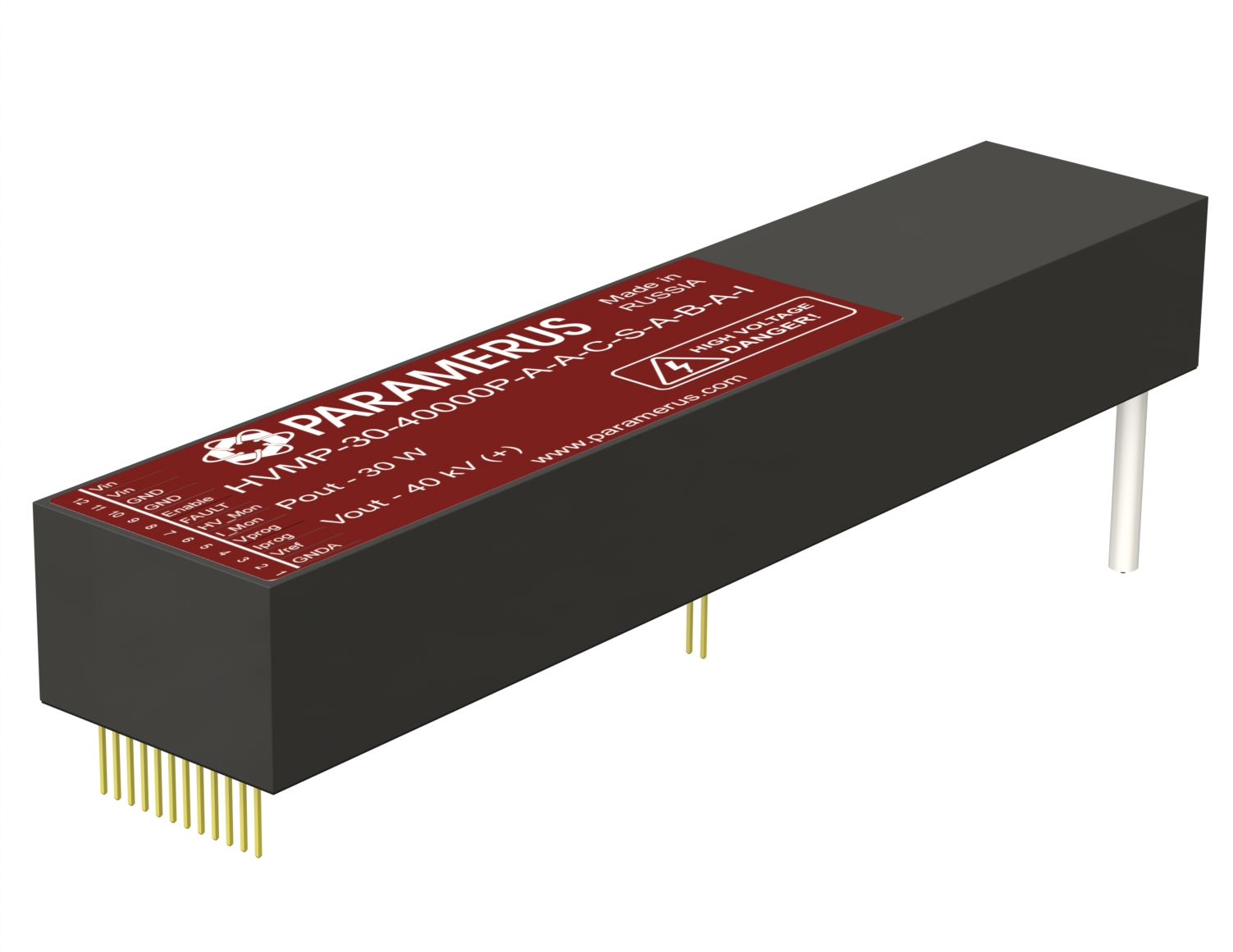

The enclosure is designed for installation on a printed circuit board by soldering or for mounting on a flat surface with a bracket, and is designed to UL94-V0 requirements. The housing material is resistant to ultraviolet light and to high electric and magnetic fields. Overall dimensions of the case are not subject to significant changes in the vacuum environment. Compact dimensions are achieved through a modular design and a specialized potting compound. A metal housing version is available as an option.
Devices with fixed output voltage are available on request.
FEATURES
- High efficiency - up to 85%
- Ultra-low ripple (<0.1%)
- Short transient times
- Low temperature drift of output parameters
- Output voltage adjustment 0 - 100%
- Output current adjustment 0 - 100%
- Short circuit protection
- Output arc protection
- Output voltage protection
- Temperature protection
- Solder pins for PCB
- Russian industrial product
- No. 10778295 under RF Government Decree No. 719
APPLICATION
- Scanning electron microscopes
- Mass spectrometers
- Gas chromatographs
- Pulse generators
- Particle detectors
- R&D, test equipment
- Wire insulation testing
- Laboratory equipment
- X-ray equipment
- Electrostatic discharge devices
- Power/voltage reference
| The lineup | Rated power, W | Maximum output voltage at rated power, V | Peak-to-peak output voltage ripple, % | Files | |||||
|---|---|---|---|---|---|---|---|---|---|
| HVMP-10-X | 10 | 125 | 250 | 500 | 1000 | 2000 | 4000 | <0.05 | |
| 6000 | 8000 | 10000 | 20000 | - | - | <0.5 | |||
| - | - | - | - | 30000 | 40000 | <1 | |||
| HVMP-20-X | 20 | 125 | 250 | 500 | 1000 | 2000 | 4000 | <0.1 | |
| 6000 | 8000 | 10000 | 20000 | - | - | <0.5 | |||
| - | - | - | - | 30000 | 40000 | <1 | |||
| HVMP-30-X | 30 | 125 | 250 | 500 | 1000 | 2000 | 4000 | <0.1 | |
| 6000 | 8000 | 10000 | - | - | - | <0.5 | |||
| - | - | - | 20000 | 30000 | 40000 | <1 | |||
| HVMP-40-X | 40 | 125 | 250 | 500 | 1000 | 2000 | 4000 | <0.1 | |
| 6000 | 8000 | 10000 | - | - | - | <0.5 | |||
| - | - | - | 20000 | 30000 | 40000 | <1 | |||
