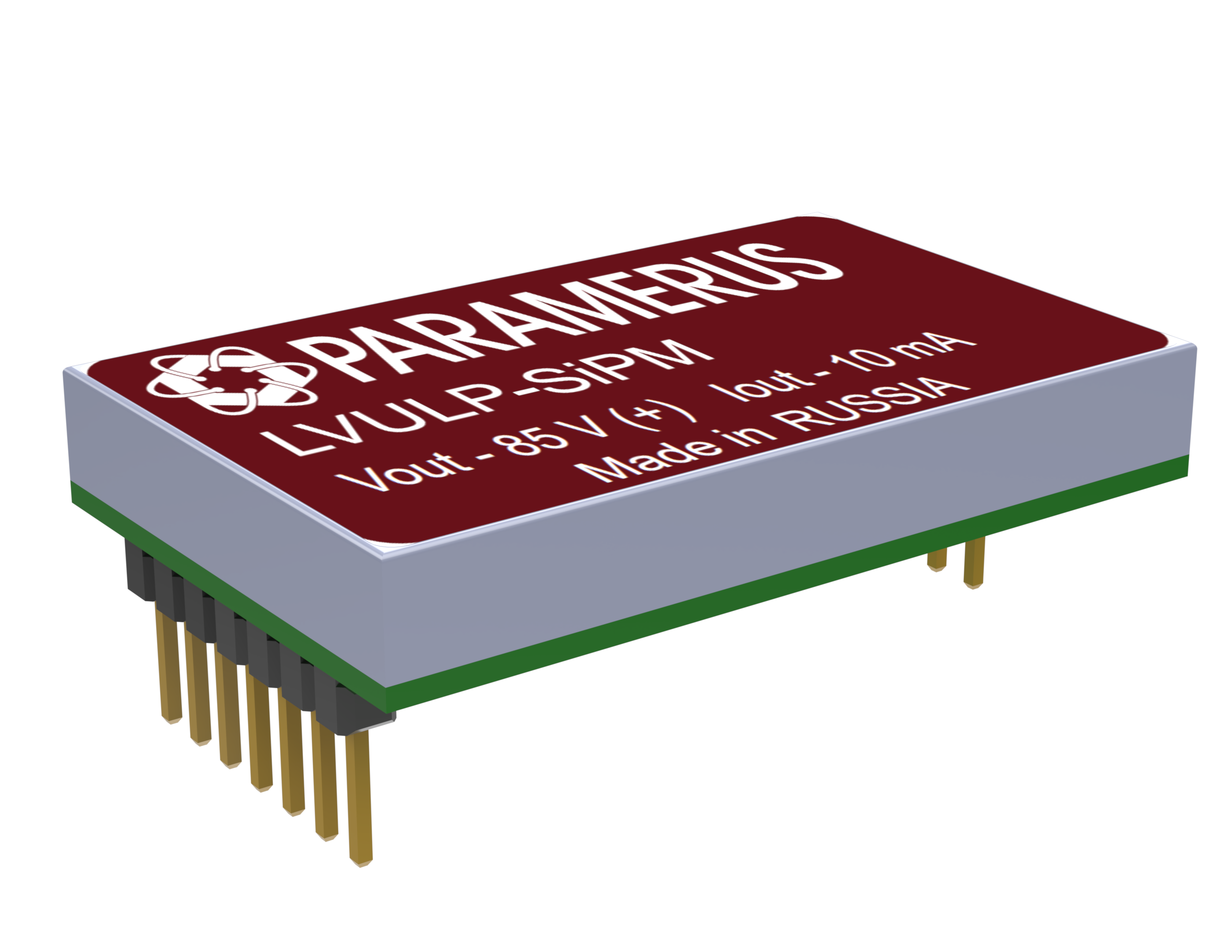

LVULP-SiPM
DESCRIPTION
The LVULP-SiPM series comprises low-voltage high-performance bias power supplies with ultra-low ripple, specially designed for use with silicon photomultipliers (SiPM). With high accuracy, temperature compensation and support for several control interfaces, these modules deliver optimal SiPM performance in scientific, medical and industrial applications. The set of control tools includes software. The output voltage can also be adjusted proportionally to an analog input. LVULP-SiPM can deliver up to 10 mA, and the output voltage can be adjusted in the range from 20 V to 85 V with a resolution of 1 mV.
FEATURES
- High-voltage power supply for single-channel PCB mounting
- SMD version
- Output voltage range 20 ÷ 85 V (10 mA)
- Suitable for large SiPM arrays
- Analog and digital control (digital control is available as an option on request)
- Very low ripple (typically <0.1 mV/h)
- High-resolution voltage and current monitor
- Temperature compensation
APPLICATION
- PET scanners and medical imaging
- Particle detectors and physics experiments
- LIDAR systems
- Photon counting at low light levels
| The lineup | Rated power, W | Maximum output current, mA | Output voltage, V | Peak-to-peak output voltage ripple, % |
|---|---|---|---|---|
| LVULP-SiPM-1-80 | 0.08 | 1 | 20-80 | ≤0.00025 |
| LVULP-SiPM-10-85 | 0.85 | 10 | 20-85 | ≤0.00025 |
