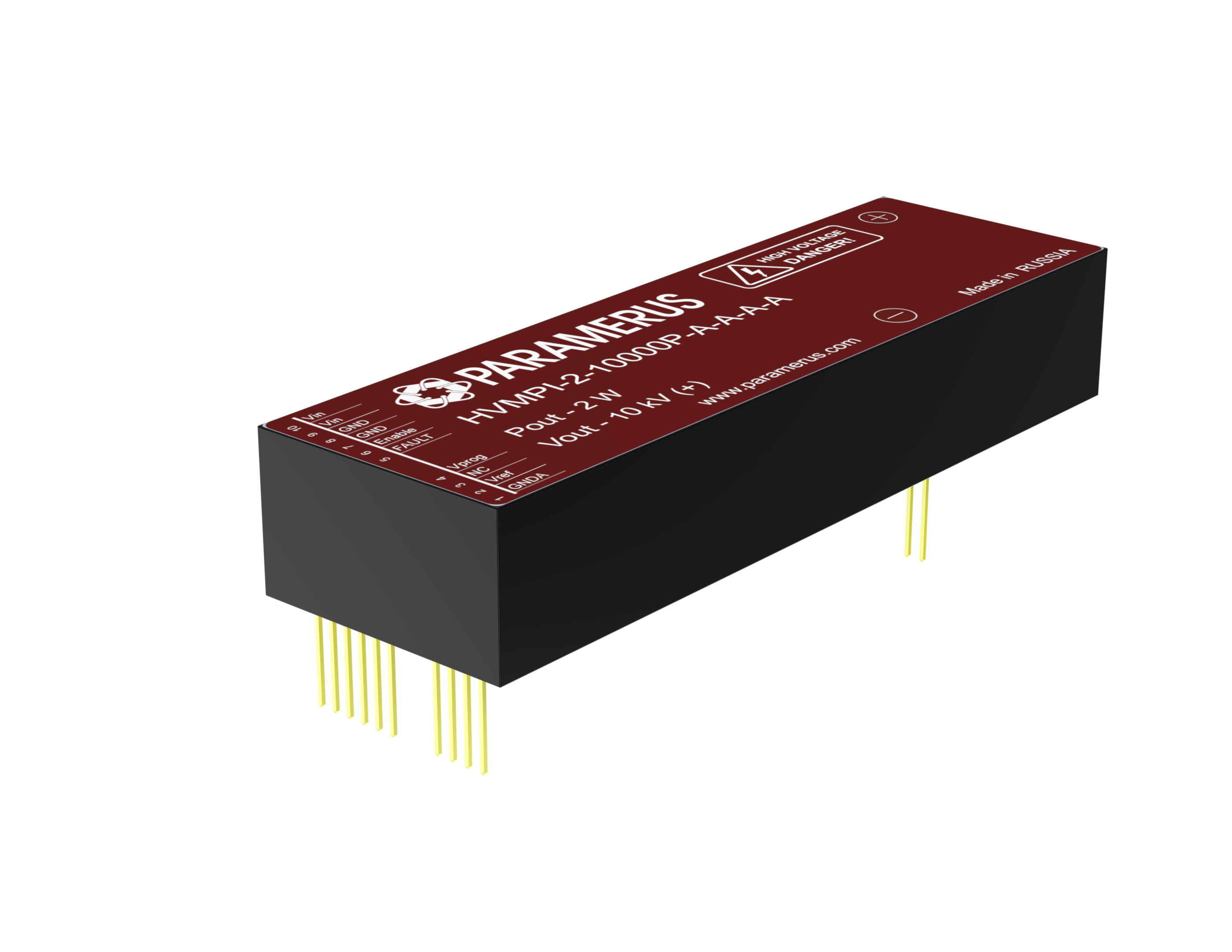

HVMPI
DESCRIPTION
The HVMPI series of isolated, adjustable precision high-voltage power supplies includes models with an output voltage from 1000 to 12000 V and a maximum power of up to 20 W. Full galvanic isolation of the high-voltage output allows the module to be connected in a floating-potential configuration or to set the required supply polarity relative to ground by grounding one terminal. All products in this series are characterized by ultra-low ripple and high transient speed, have excellent dynamic characteristics over the entire range of allowable loads and temperatures.
The enclosure is designed for installation on a printed circuit board/frame/wall, meets UL94-V0 requirements and is UV resistant. Overall dimensions of the case are not subject to significant changes in the vacuum environment. Optionally, a shielded housing is available, which ensures the resistance of the product to high electric and magnetic fields, as well as a low level of EMI.
FEATURES
- Short transient times
- Low EMP
- Low temperature drift
- Output voltage adjustment 0 - 100%
- Input voltage protection
- Temperature protection
- Solder pins for PCB
- Warranty 1 year
- Smallest case size in its class on the global market
APPLICATION
- Mass spectrometers
- Electrophoresis
- Capacitor charging
- Field Generators
- Electrostatic cartridges
- PZT drivers
| The lineup | Rated power, W | Maximum output voltage at rated power, V | Peak-to-peak output voltage ripple, % | Files | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| HVMPI-6-X | 6 | 1000 | 2000 | 4000 | 6000 | - | - | - | <1 | |
| - | - | - | - | 8000 | 10000 | 12000 | <2.5 | |||
| HVMPI-8-X | 8 | 1000 | 2000 | 4000 | 6000 | - | - | - | <1 | |
| - | - | - | - | 8000 | 10000 | 12000 | <2.5 | |||
| HVMPI-10-X | 10 | 1000 | 2000 | 4000 | 6000 | - | - | - | <1 | |
| - | - | - | - | 8000 | 10000 | 12000 | <2.5 | |||
| HVMPI-20-X | 20 | 1000 | 2000 | 4000 | 6000 | - | - | - | <1 | |
| - | - | - | - | 8000 | 10000 | 12000 | <2.5 | |||
