EBWHP
DESCRIPTION

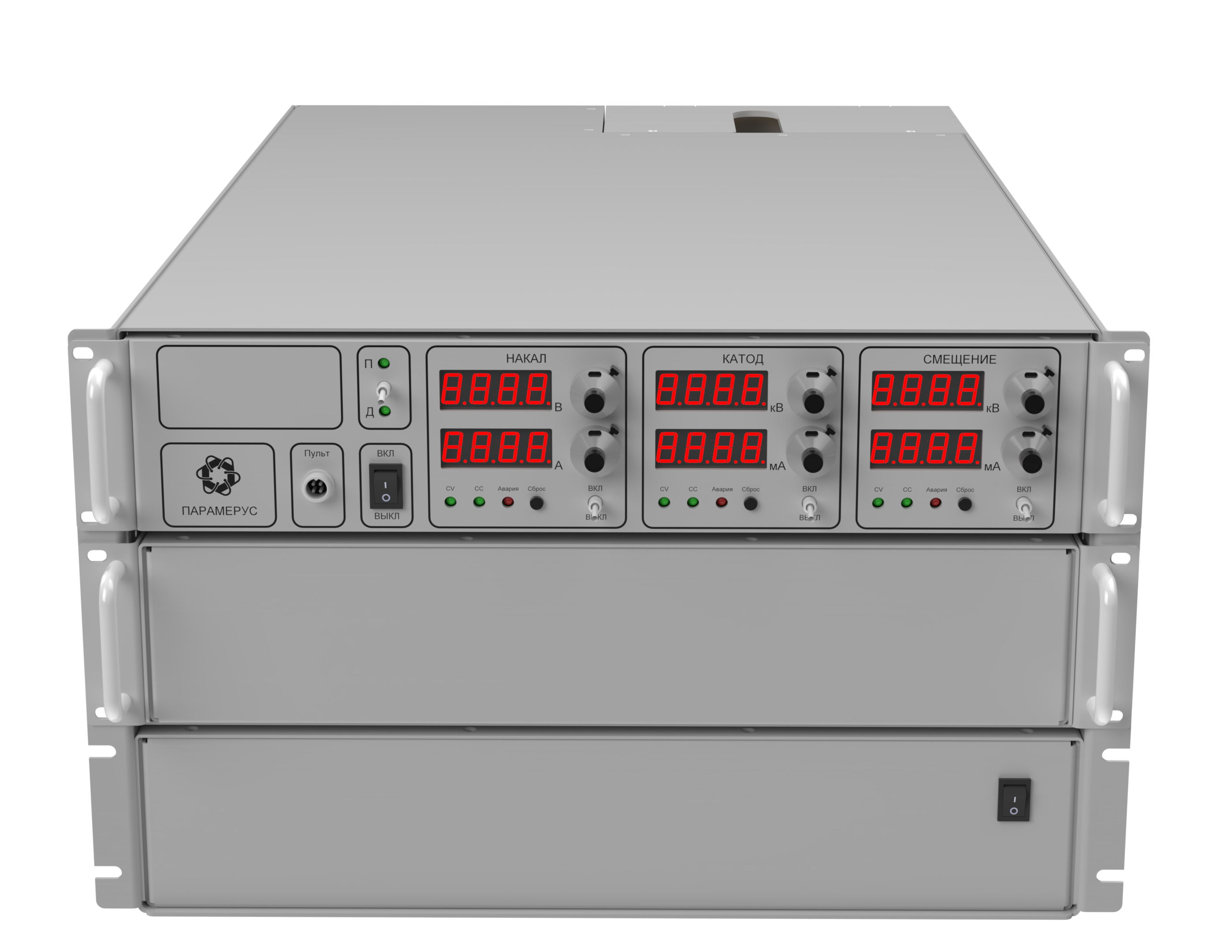

The EBWHP series of high-voltage power supplies for electron beam welding is designed for installation in a server rack and includes models with negative polarity of the accelerating voltage from 30 kV to 150 kV and power from 0.5 kW to 60 kW. The sources have a three-channel design: accelerating, filament, bias. All models are equipped with a set of protections with adjustable thresholds and support three modes of operation: current, voltage and power adjustment, which allows you to use these devices to solve a wide range of industrial and research tasks.
FEATURES
- Three-channel design: Accelerating; Filament; Bias
- High stability: instability <0.01%, ripple <0.1%
- Full set of protections: arc discharge, short circuit, overload and overheating
- Active PFC with 99% efficiency
- Analog interfaces with optical coupling DA-15, DA-25
- Support for digital interfaces RS-232, RS-485, USB, Ethernet
- Intuitive user software
- Production, support and service - Russian Federation
APPLICATION
- Electron beam welding (EBW)
- R&D
| The lineup | Rated power, W | Maximum output voltage at rated power, kV | Application | |||||
|---|---|---|---|---|---|---|---|---|
| EBWHP-0.5k | 500 | 30 | 60 | - | - | - | - | Accelerating; Filament; Bias |
| EBWHP-1k | 1000 | 30 | 60 | - | - | - | - | |
| EBWHP-2k | 2000 | 30 | 60 | 80 | 100 | 120 | - | |
| EBWHP-5k | 5000 | 30 | 60 | 80 | 100 | 120 | - | |
| EBWHP-10k | 10000 | 30 | 60 | 80 | 100 | 120 | 150 | |
| EBWHP-20k | 20000 | 30 | 60 | 80 | 100 | 120 | 150 | |
| EBWHP-30k | 30000 | 30 | 60 | 80 | 100 | 120 | 150 | |
| EBWHP-60k | 60000 | 30 | 60 | 80 | 100 | 120 | 150 | |
