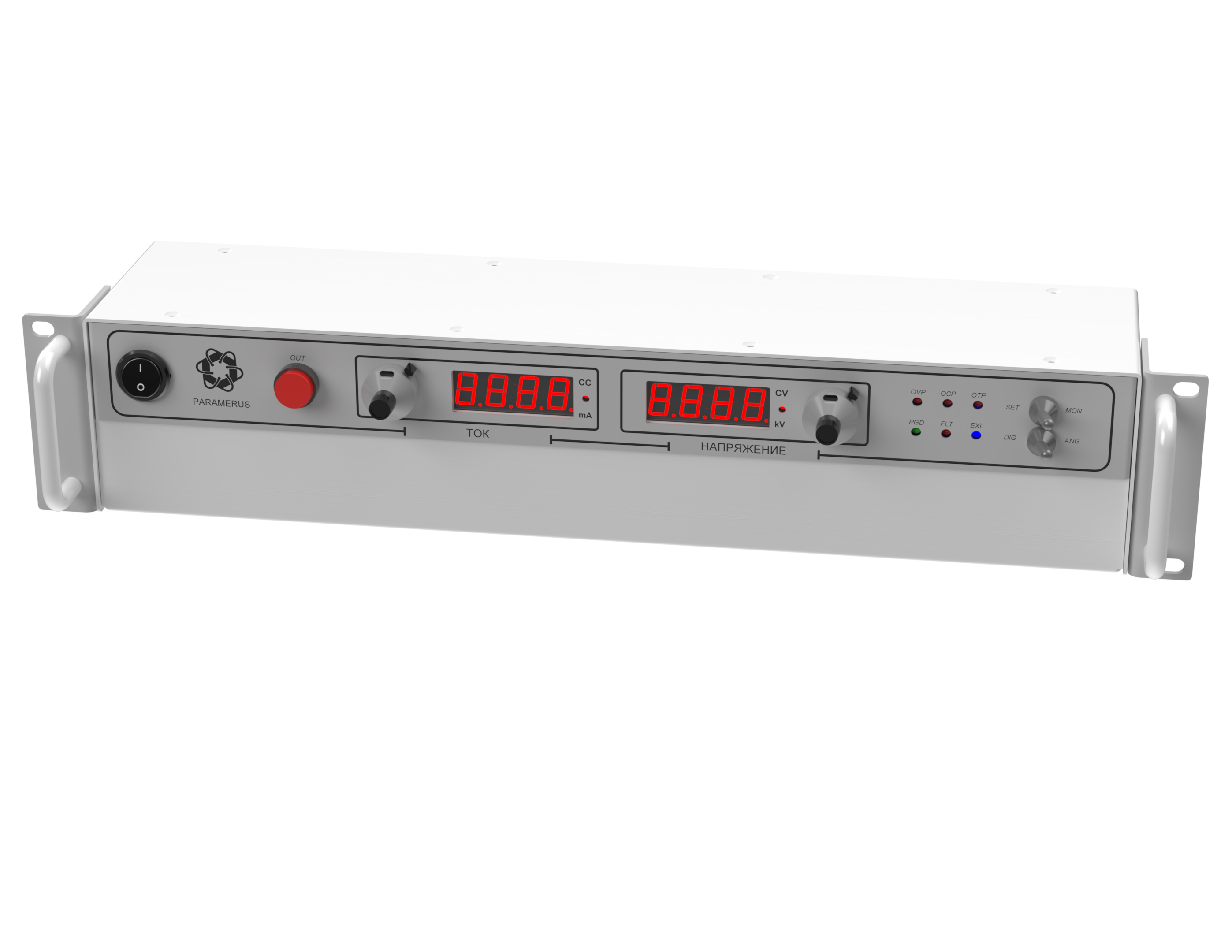

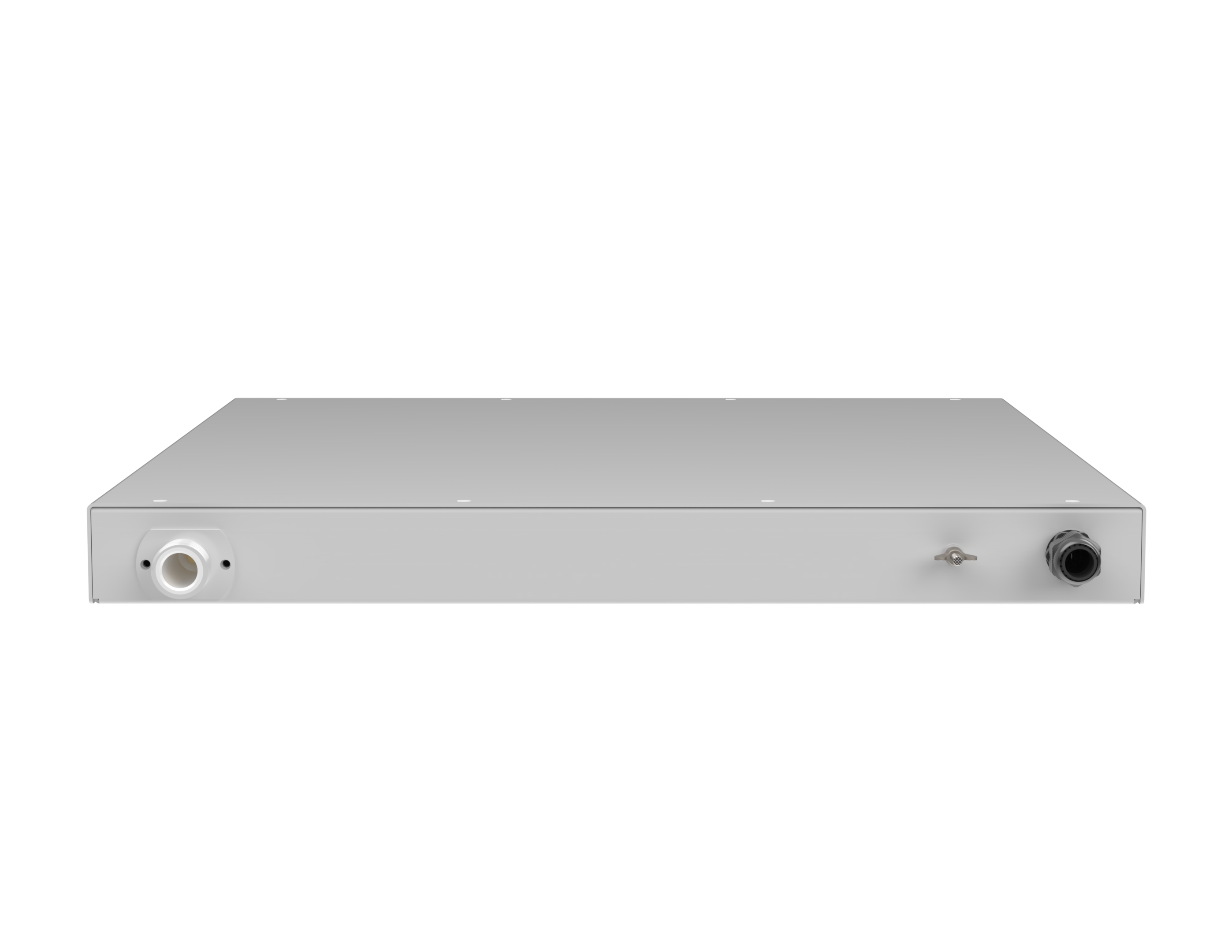

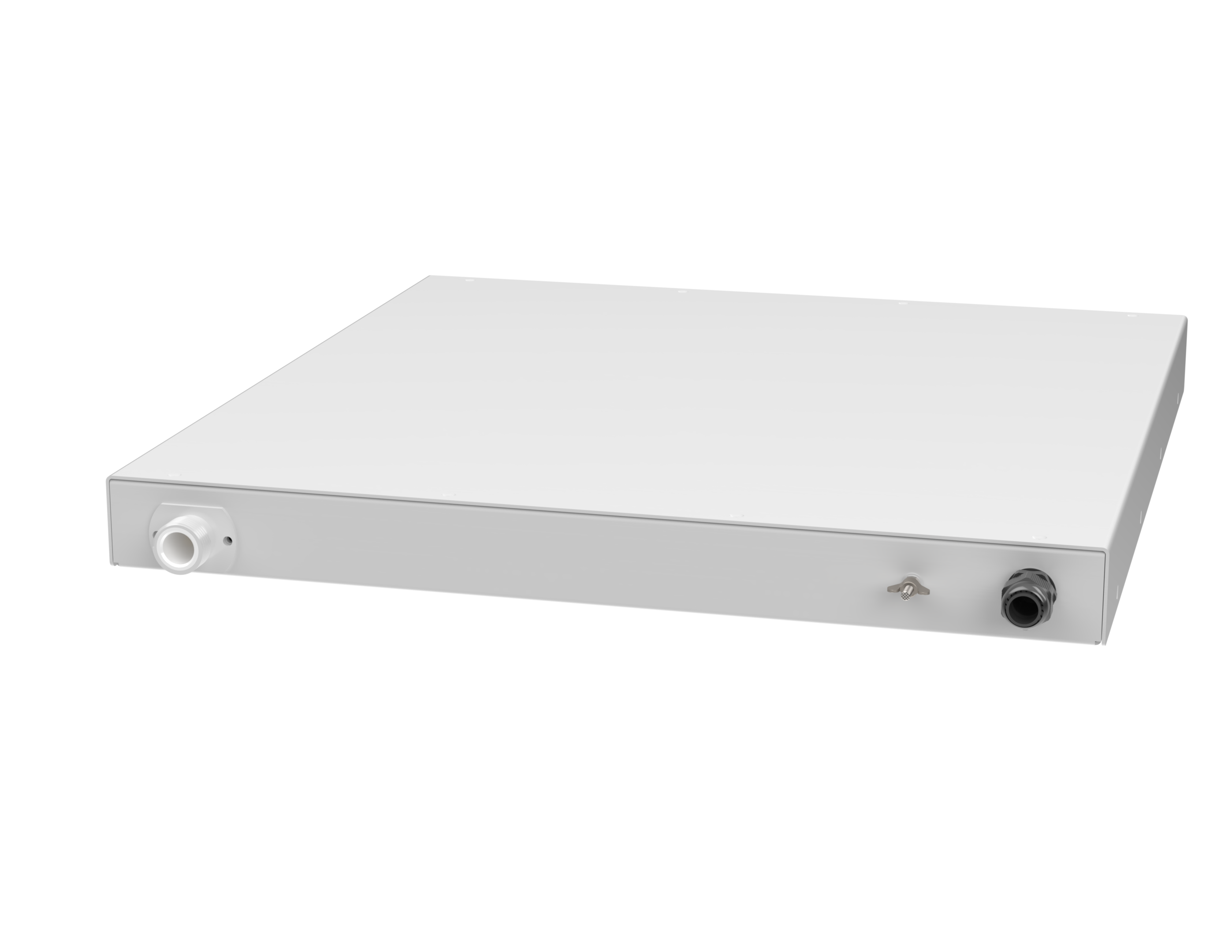

CUSHV
DESCRIPTION
The CUSHV series of high-voltage power supplies for electrostatic separators is designed for installation in a server rack and includes models with negative, positive or switchable polarity, voltage from 10 kV to 30 kV and power from 100 W to 600 W. The sources have an IP54 protection rating and provide stable operation in conditions of electrically conductive dust. All models are equipped with a set of protections with adjustable thresholds, and the operating mode of the source is specially adapted for electrostatic separators, ensuring continuity of operation.
FEATURES
- Ingress protection rating IP 54
- High stability: instability <0.01%, ripple <0.1%
- Full set of protections: arc discharge, short circuit, overload and overheating
- Active PFC with 99% efficiency
- Analog interfaces with optical coupling DA-15, DA-25
- Support for digital interfaces RS-232, RS-485, USB, Ethernet
- Intuitive user software
- Production, support and service - Russian Federation
APPLICATION
- Electrostatic separators
- R&D
| The lineup | Rated power, W | Maximum output voltage at rated power, kV | Peak-to-peak output voltage ripple, % | ||
|---|---|---|---|---|---|
| CUSHV-100* | 100 | 10 | 20 | 30 | 0.1 |
| CUSHV-200* | 200 | 10 | 20 | 30 | 0.1 |
| CUSHV-300* | 300 | 10 | 20 | 30 | 0.1 |
| CUSHV-400* | 400 | 10 | 20 | 30 | 0.1 |
| CUSHV-500* | 500 | 10 | 20 | 30 | 0.1 |
| CUSHV-600* | 600 | 10 | 20 | 30 | 0.1 |
* Polarity: P – positive, N – negative, R – switchable.
