Высоковольтные штекеры и разъемы для рентгеновских аппаратов
DESCRIPTION

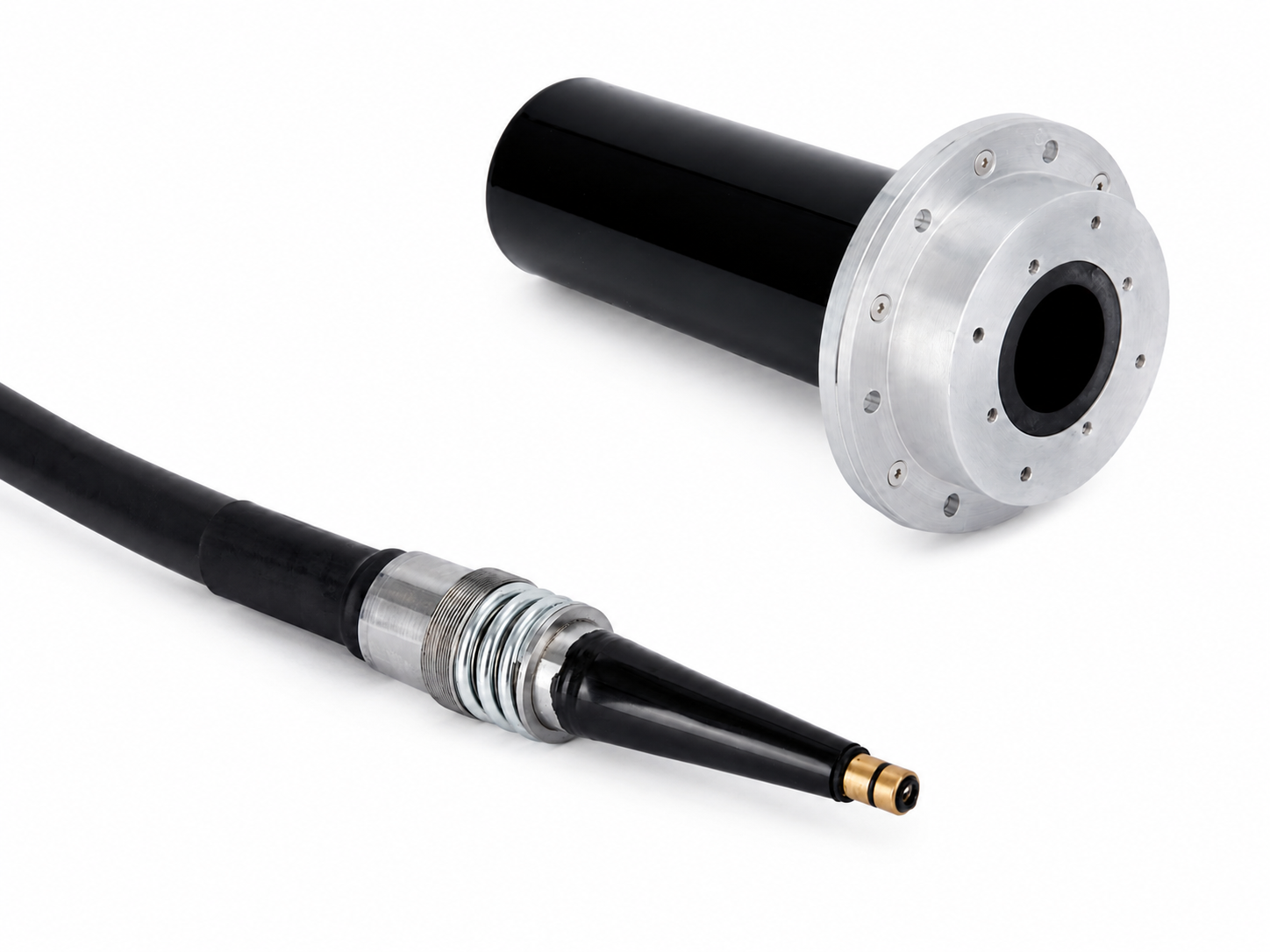

VVRX high-voltage receptacles and VVSX plugs are designed for medical and industrial X-ray machines and high-voltage power supplies. The lineup consists of two groups. RCA and R versions: nine receptacles rated from 75 to 225 kV DC with 3 to 6 contacts and the single-pole WBX-Z60-RCA3 plug rated at 60 kV DC for mammography equipment. CA versions: 17 plugs and 6 receptacles for high-voltage cable assemblies rated from 60 to 225 kV DC, with 1 to 6 contacts, in straight and right-angle configurations.
FEATURES
- RoHS and REACH compliance
- High heat resistance — RCA and R versions except WBX-Z75-RCA11 CTF/ATF; CA versions rated 160 and 225 kV except WBX-Z225-CA12RA
- Nickel-plated brass contacts, oil-resistant seal and high fire resistance (WBX-Z75-RCA1, -RCA4, -RCA7, WBX-Z100-RCA52, WBX-Z160-RCA16, -RCA48)
- Adhesive-free design (WBX-Z160-R24, WBX-Z225-R28)
- Compact size, UL 94-5VA material, for VERTEX-RTM VR-R2 plugs (WBX-Z75-RCA11 CTF/ATF)
- Straight and right-angle configurations — CA versions, see the table
- Compatible with flexible small-diameter high-voltage cables — CA versions except WBX-Z60-CA3, -CA3RA and WBX-Z75-CA11
- Tinned copper braid shield with up to 95 % coverage — CA versions rated 60–100 kV (WBX-Z60-CA…, WBX-Z75-CA…, WBX-Z100-CA…)
- Ethylene propylene rubber (EP) insulating part — WBX-Z225-CA…
APPLICATION
- Medical X-ray machines
- Industrial X-ray machines
- Computed tomography
- Angiography equipment
- Mammography equipment
- Laboratory and industrial high-voltage power supplies
- Other high-voltage DC equipment
RCA and R versions
| The lineup | Contacts | Rated voltage, kV DC | Test voltage (15 min), kV DC | Maximum current, A | Maximum operating temperature, °C | Files |
|---|---|---|---|---|---|---|
| WBX-Z60-RCA3 | 1 | 60 | 75 | 25 | 100 | Plug |
| WBX-Z75-RCA1 | 3 | 75 | 150 | 25 | 130 | Receptacle |
| WBX-Z75-RCA4 | 4 | 75 | 150 | 25 | 130 | Receptacle |
| WBX-Z75-RCA7 | 4 | 75 | 150 | 25 | 130 | Receptacle |
| WBX-Z75-RCA11 CTF/ATF | 4 | 75 | — | 15 | 100 | Receptacle |
| WBX-Z100-RCA52 | 5 | 75 | 150 | 25 | 130 | Receptacle |
| WBX-Z160-R24 | 3 | 160 | — | 16 | 120 | Receptacle |
| WBX-Z160-RCA16 | 3 | 160 | 200 | 25 | 130 | Receptacle |
| WBX-Z160-RCA48 | 6 | 160 | 200 | 25 | 130 | Receptacle |
| WBX-Z225-R28 | 3 | 225 | — | 16 | 120 | Receptacle |
CA versions
| The lineup | Configuration | Contacts | Rated voltage, kV DC | Maximum operating temperature, °C | Files |
|---|---|---|---|---|---|
| WBX-Z60-CA3 | Straight | 1 | 60 | 100 | Plug |
| WBX-Z60-CA3RA | Right-angle | 1 | 60 | 100 | Plug |
| WBX-Z75-CA1RA | Right-angle | 3 | 75 / 100 | 100 | Plug |
| WBX-Z75-CA11 | Straight, right-angle | 4 | 75 | 100 | Plug |
| WBX-Z75-CA13 | — | 4 | 75 | 100 | Receptacle |
| WBX-Z75-CA14 | — | 1 | 75 | 100 | Receptacle |
| WBX-Z75-CA52 | Straight | 5 | 75 | 100 | Plug |
| WBX-Z75-CA52RA | Right-angle | 5 | 75 | 100 | Plug |
| WBX-Z100-CA1 | Straight | 3 | 75 / 100 | 100 | Plug |
| WBX-Z100-CA4 | Straight | 4 | 75 / 100 | 100 | Plug |
| WBX-Z100-CA7 | Straight | 4 | 75 / 100 | 100 | Plug |
| WBX-Z160-CA16 | Straight | 3 | 160 | 100 | Plug |
| WBX-Z160-CA21 | Straight | 3 | 160 | 150 | Receptacle |
| WBX-Z160-CA22 | Right-angle | 4 | 160 | 200 | Receptacle |
| WBX-Z160-CA48 | Straight | 6 | 160 | 100 | Plug |
| WBX-Z160-CA128 | Straight | 6 | 160 | 150 | Receptacle |
| WBX-Z160-CA143 | Straight | 6 | 160 | 150 | Receptacle |
| WBX-Z225-CA12 | Straight, right-angle | 3 | 225 | 90 | Plug |
| WBX-Z225-CA12RA | Straight, right-angle | 3 | 225 | 90 | Plug |
| WBX-Z225-CA12SL | Straight, right-angle | 3 | 225 | 90 | Plug |
| WBX-Z225-CA12SLRA | Straight, right-angle | 3 | 225 | 90 | Plug |
| WBX-Z225-CA18SL | Straight, right-angle | 3 | 225 | 90 | Plug |
| WBX-Z225-CA18SLRA | Right-angle | 3 | 225 | 90 | Plug |
