Высоковольтные провода и кабели
DESCRIPTION

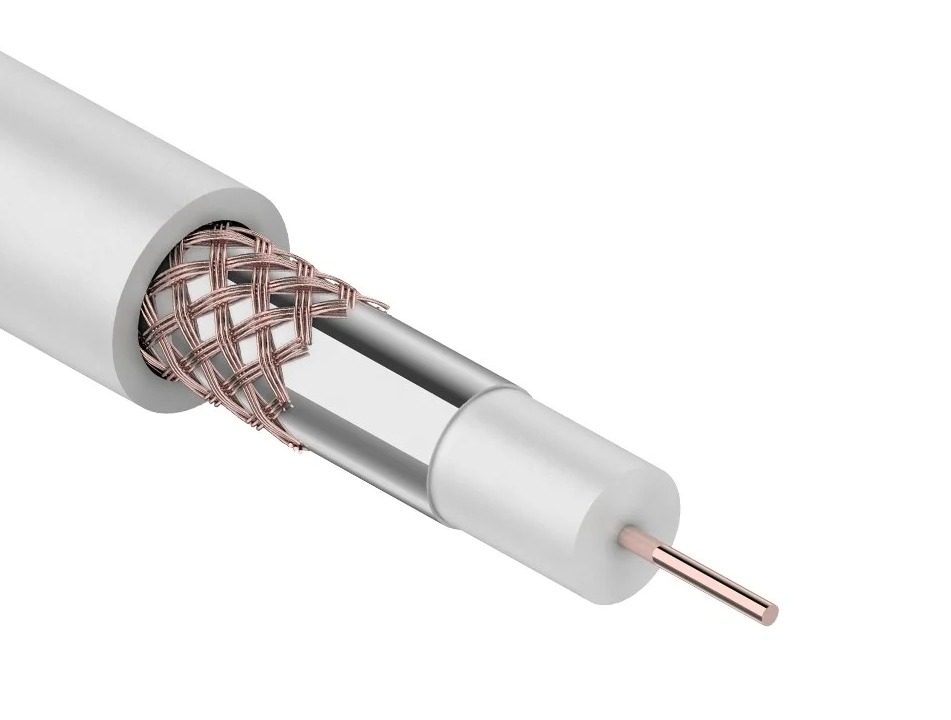

VVCab high-voltage wires and cables are designed for inter-unit and internal wiring of high-voltage circuits. The range includes six products rated from 10 to 150 kV: five shielded cables, including 50 Ω coaxial types, and the RMPVN hook-up wire.
FEATURES
- Voltage from 10 to 150 kV depending on the type
- Shielded cables, including 50 Ω coaxial types (50541-DXT, 60kVDC, EB5-10KV), and the unshielded RMPVN hook-up wire
- Fluoropolymer insulation and extended operating temperature range: −60 to +180 °C (60kVDC, VFPF), −55 to +165 °C (EB5-10KV)
- Maximum frequency up to 3000 MHz (EB5-10KV)
- Compatible with HSB, SHV and VVR/VVSh high-voltage connectors — all cables except the RMPVN wire
APPLICATION
- Inter-unit connections in high-voltage power supplies and test installations
- Connection of high-voltage modules, loads and measurement units
- Industrial and laboratory equipment
| The lineup | Type | Voltage, kV | Outer diameter, mm | Insulation | Jacket | Operating temperature, °C | Connectors | Files |
|---|---|---|---|---|---|---|---|---|
| EB5-10KV | Coaxial RF | 10 | 4.35 | Polytetrafluoroethylene | Fluoropolymer | From −55 to +165 | SHV 10 kV | |
| 50541-DXT | Coaxial | 20 | 7.20 ±0.3 | Cross-linked polyethylene | PVC | From −25 to +70 | HSB 20 kV | |
| RMPVN | Hook-up wire | 30 | 4.70 | Polyethylene | PVC compound | From −50 to +85 | — | |
| VFPF | Shielded | 20 / 40 | 6.30 ±0.2 | Fluoropolymer | Silicone rubber | From −60 to +180 | HSB 20 kV, HSB 40 kV | |
| 60kVDC | Coaxial | 60 | 7 | Fluoropolymer | PVC | From −60 to +180 | VVR/VVSh-P30, VVR/VVSh-P50 | |
| DZ825 | Coaxial | 150 | 15.9 | Polyethylene | PVC | From −20 to +80 | VVR/VVSh-F150 |
