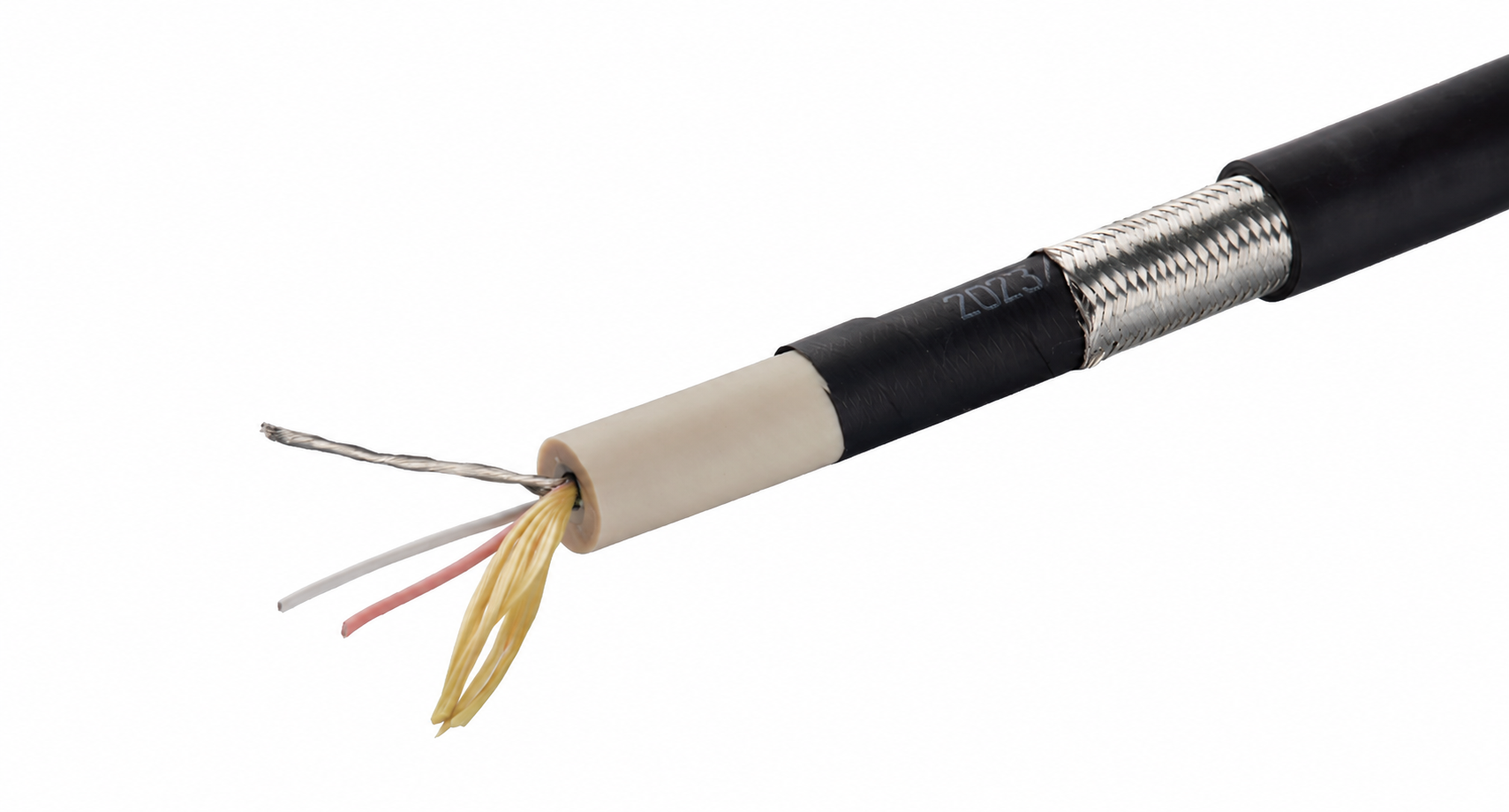

Высоковольтные кабели для рентгеновских аппаратов
DESCRIPTION
High-voltage cables of the VVCabX series are designed for X-ray machines and operation in DC circuits up to 250 kV. The series includes twelve versions rated at 60, 75, 100, 160 and 250 kV DC.
The versions differ in outer diameter from 12.4 to 35.5 mm, capacitance between conductor and shield from 95 to 175 pF/m, and conductor design. The WBX-Z160-N6 version is a composite cable with separately insulated conductors X2, X1, Foc, L and Fil.
FEATURES
- RoHS and REACH compliance
- High flexibility
- Depending on the version — low capacitance, small diameter, shield braid density up to 95%
APPLICATION
- Stationary X-ray machines
- Standard X-ray systems
- Computed tomography
- Angiography
- Mammography equipment
- Industrial non-destructive testing systems
- Operation in DC circuits up to 250 kV DC
- Use in high-voltage X-ray assemblies subject to bending radius and temperature requirements
| The lineup | Rated voltage, kV | Main insulation test voltage | Maximum current, A | Outer diameter, mm | Capacitance between conductor and shield, pF/m | Minimum bending radius, static / dynamic, mm | Net weight, kg/km | Files |
|---|---|---|---|---|---|---|---|---|
| WBX-Z60-M1 | 60 | 90 kV DC / 10 min | 31 | 12.4 ±0.5 | 120 ±12 | <25 / <50 | 205 | |
| WBX-Z75-A4 | 75 | 120 kV DC / 10 min | 15 | 16.5 ±0.5 | 150 ±15 | <42 / <84 | 338 | |
| WBX-Z75-A5 | 75 | 120 kV DC / 10 min | 15 | 19.0 ±0.5 | 150 ±15 | <42.5 / <95 | 434 | |
| WBX-Z75-L3 | 75 | 120 kV DC / 10 min | 18 | 16.5 ±0.5 | 140 ±14 | <42 / <84 | 345 | |
| WBX-Z75-S4 | 75 | 120 kV DC / 10 min | 1.5 mm² — 16; 0.5 mm² — 9 | 19.0 ±0.5 | 165 ±15 | <45 / <90 | 409 | |
| WBX-Z75-T4 | 75 | 120 kV DC / 10 min | 15 | 19.0 ±0.5 | 145 ±14 | <45 / <90 | 434 | |
| WBX-Z75-X3 | 75 | 120 kV DC / 10 min | 18 | 14.0 ±0.5 | 175 ±17 | <35 / <70 | 256 | |
| WBX-Z75-X3-RX | 75 | 120 kV DC / 10 min | 18 | 14.5 ±0.5 | 175 ±17 | <35 / <70 | 256 | |
| WBX-Z100-U3 | 100 | 160 kV DC / 10 min | 18 | 19.4 ±0.5 | 135 ±13 | <50 / <100 | 448 | |
| WBX-Z160-N3 | 160 | 220 kV DC / 10 min | 1.5 mm² — 15; 1.25 mm² — 14 | 28 ±1.0 | 105 ±10 | <70 / <140 | 881 | |
| WBX-Z160-N6 | 160 | 190 kV DC / 30 min | — | 34 | 140 ±14 | — | 1200 | |
| WBX-Z250-P3 | 250 | 300 kV DC / 10 min | 15 | 35.5 ±1.5 | 95 ±10 | <90 / <180 | 1238 |
