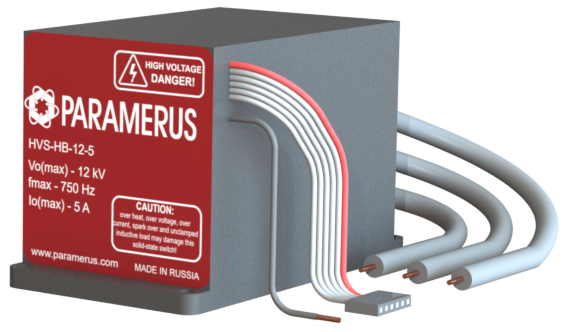

HVS-RH

DESCRIPTION

The HVS-RH series includes high voltage solid state relays in half bridge configuration, equipped with a set of protections and feedbacks. Products of this series are designed to form rectangular pulses or supply direct voltage to any type of load. Relays of the HVS-RH series can switch at any voltage level from 0 to maximum.

FEATURES

• Operating voltage up to 20 kV
• Peak current up to 120 A
• Pulse Width 15 µs to DC
• Standard TTL control
• Voltage switching time from 100 ns
• Maximum continuous frequency up to 5 kHz
• Supply voltage 12 V
• Ability to switch voltage from 0 V to the maximum allowable
• Open resistance from 700 mΩ
• Opening delay time no more than 100 µs
• High reliability, noise immunity and vibration resistance
• High stability of the pulse shape on the load
• Control signal bounce protection
• Through current protection
• Extremely low temperature drift
• A working resource of at least 80,000 hours at a frequency of 1 kHz (for comparison: for arresters and thyratrons, this indicator ranges from hundreds to several thousand hours)
• Full galvanic isolation of the control module
• Possibility of connection to a circuit with 'floating ground'

APPLICATION

Barrier discharge systems, Pulsed gas lamps, Spectrometry, Synthesis of materials, Applying a potential to the electron deflection/acceleration grid, Defectoscopy, Pulsed radiation sources, Microwave devices, R&D.
