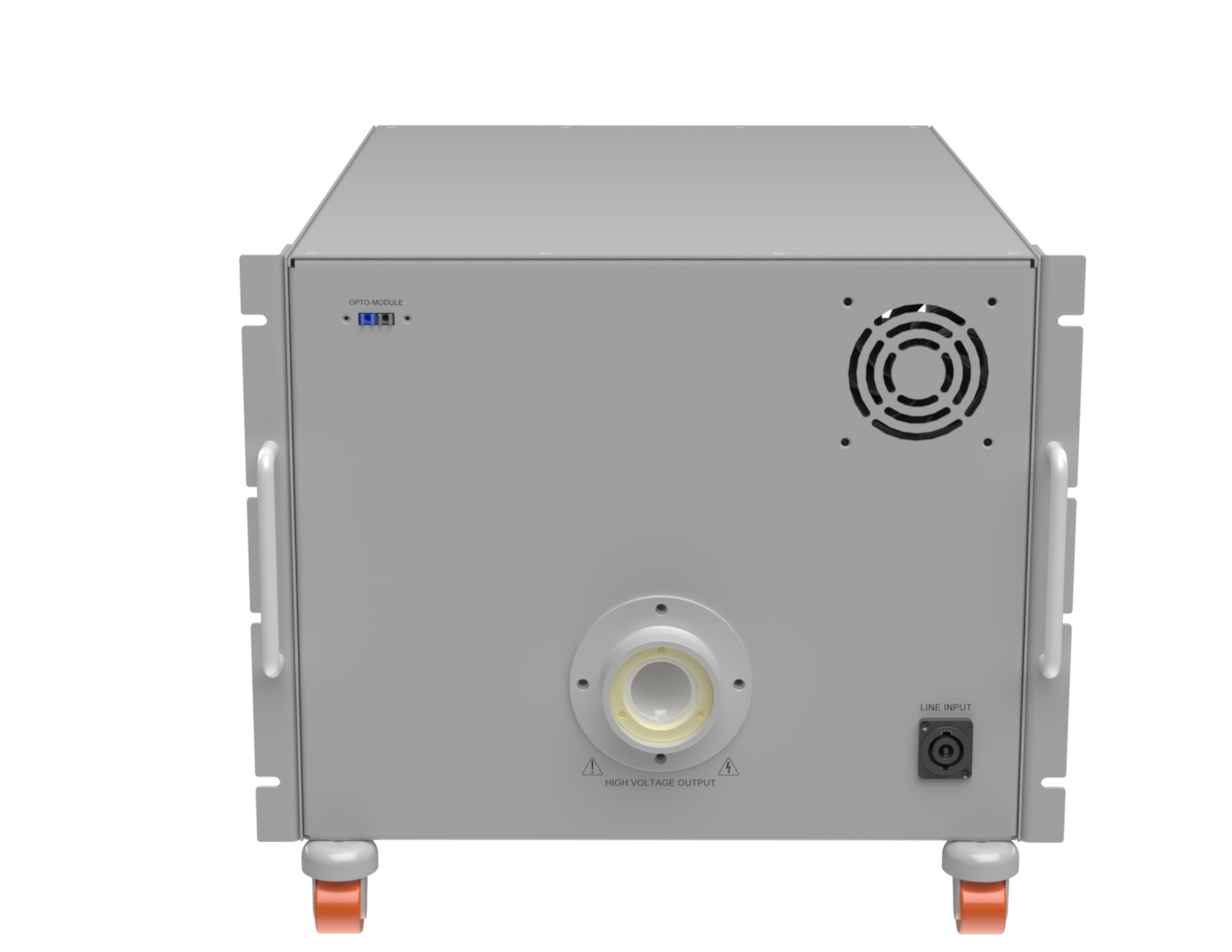

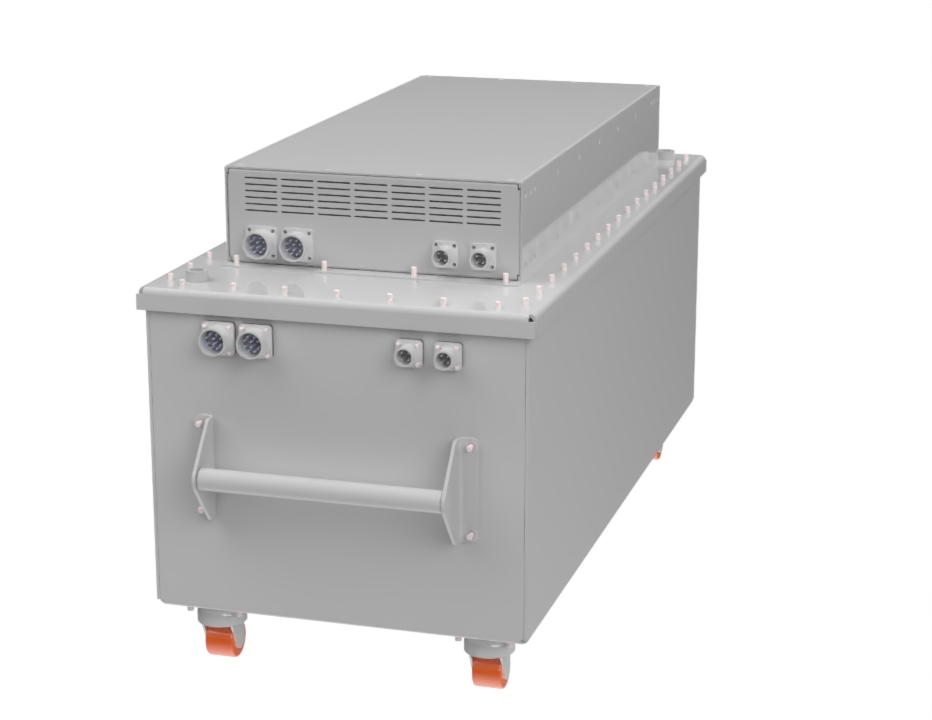

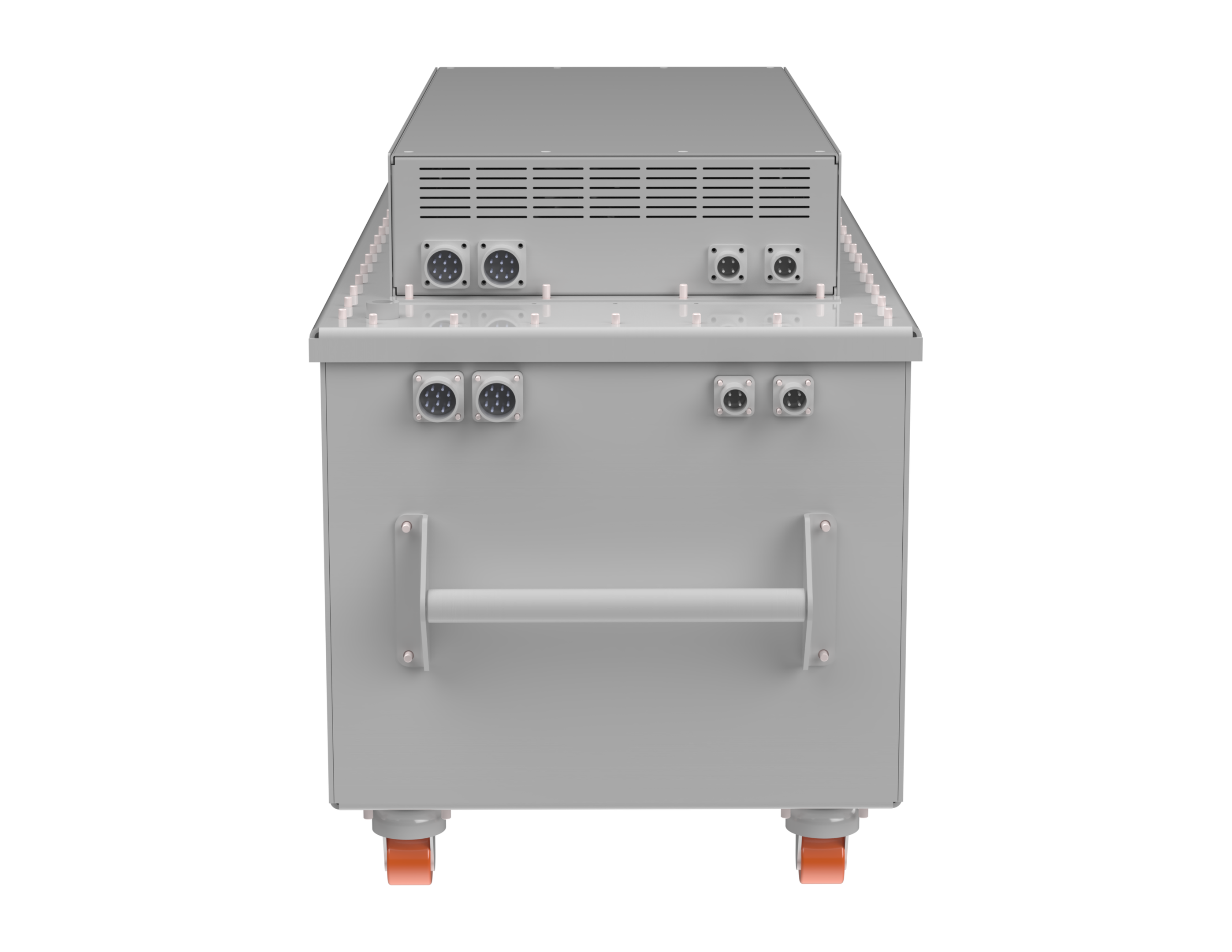

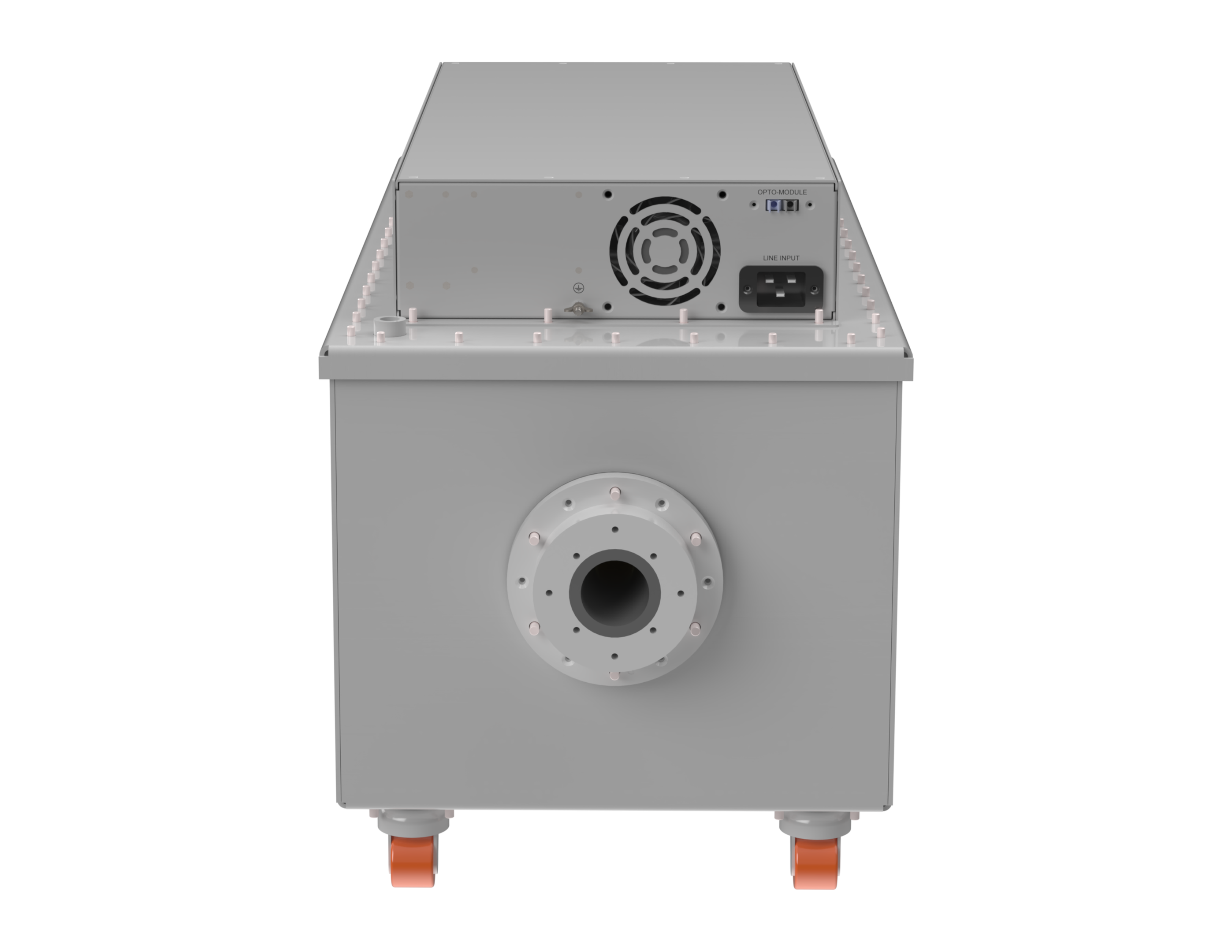

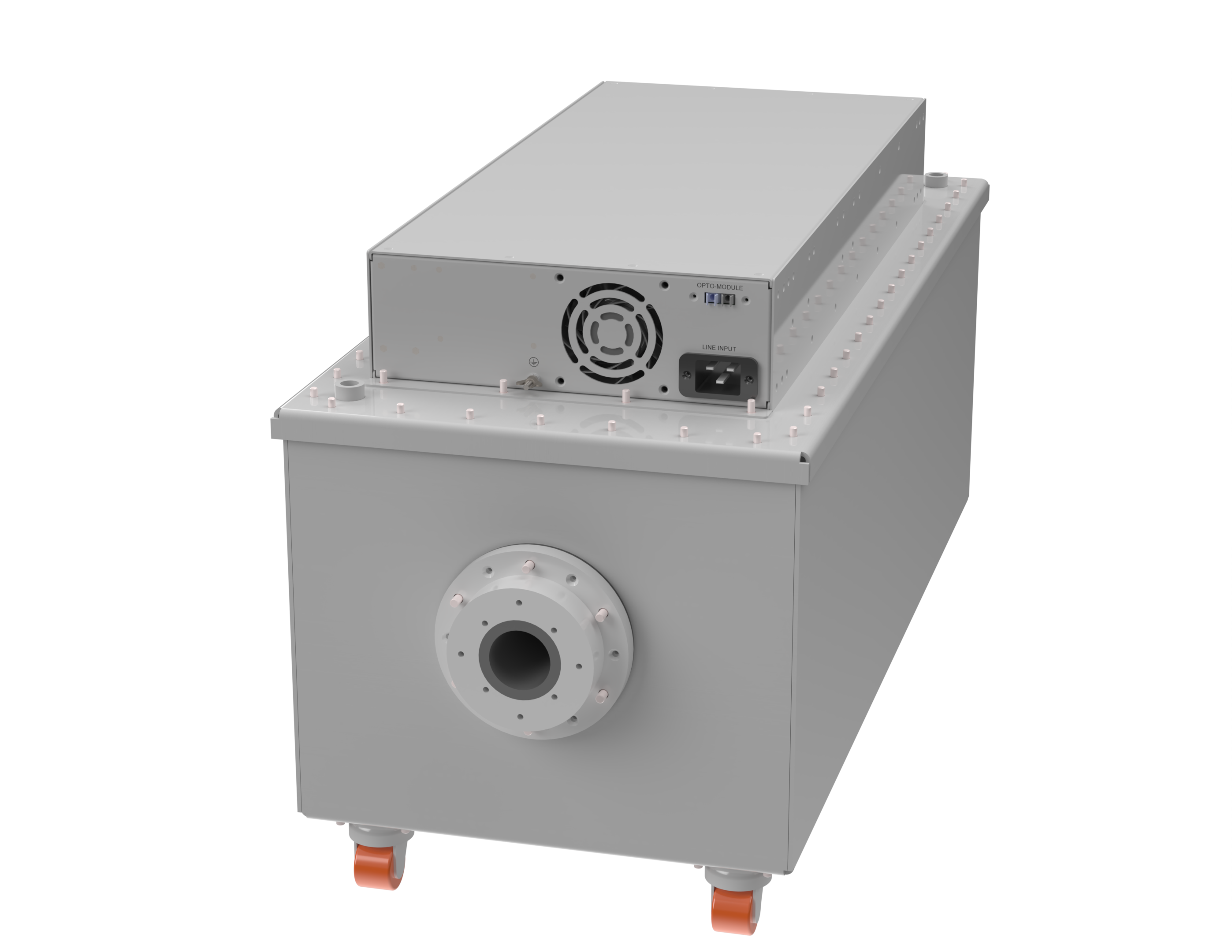

XHVHP-XRD
DESCRIPTION
XHVHP-XRD is a series of modern X-ray power supplies with power from 500 W to 6000 W and voltage from 20 kV to 225 kV. These power supplies combine high stability, digital control and configuration flexibility.
The choice of polarity, single- or dual-channel filament versions and a full set of digital interfaces make it easy to integrate the power supplies into laboratory and industrial systems. A module with a front panel for manual adjustment is available for the convenience of users.
Current, voltage and power operating modes, together with a set of intelligent protections, make XHVHP-XRD a reliable solution both for industrial inspection and security systems and for research tasks.
FEATURES
- Input power protection
- Overload and short circuit protection
- Output over/under voltage protection
- Arc protection
- Single- or dual-channel filament module
- Active PFC with 99% efficiency
- Analog interfaces with optical coupling DA-15, DA-25
- Support for digital interfaces RS-232, RS-485, USB, Ethernet
- Intuitive user software
- Production, support and service - Russian Federation
APPLICATION
- Non-destructive Testing (NDT)
- Inspection Systems and Scanners
- Industrial Radiography
- Computed Tomography (CT)
- Medical Diagnostics
| The lineup | Rated power, W | Maximum output voltage at rated power, kV | Peak-to-peak output voltage ripple, % | Files | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| XHVHP-XRD-0.5-X* | 500 | - | - | - | 80 | 100 | 120 | 160 | 225 | <1 | |
| XHVHP-XRD-1-X* | 1000 | - | - | - | 80 | 100 | 120 | 160 | 225 | <1 | |
| XHVHP-XRD-1.8-X* | 1800 | - | - | - | 80 | 100 | 120 | 160 | 225 | <1 | |
| XHVHP-XRD-2-X* | 2000 | - | - | - | 80 | 100 | 120 | 160 | 225 | <1 | |
| XHVHP-XRD-3-X* | 3000 | - | - | - | 80 | 100 | 120 | 160 | 225 | <1 | |
| XHVHP-XRD-4-X* | 4000 | - | - | - | 80 | 100 | 120 | 160 | 225 | <1 | |
| XHVHP-XRD-4.5-X* | 4500 | 20 | 40 | 60 | 80 | 100 | 120 | 160 | 225 | <1 | |
| XHVHP-XRD-5-X* | 5000 | 20 | 40 | 60 | 80 | 100 | 120 | 160 | 225 | <1 | |
| XHVHP-XRD-6-X* | 6000 | 20 | 40 | 60 | 80 | 100 | 120 | 160 | 225 | <1 | |
